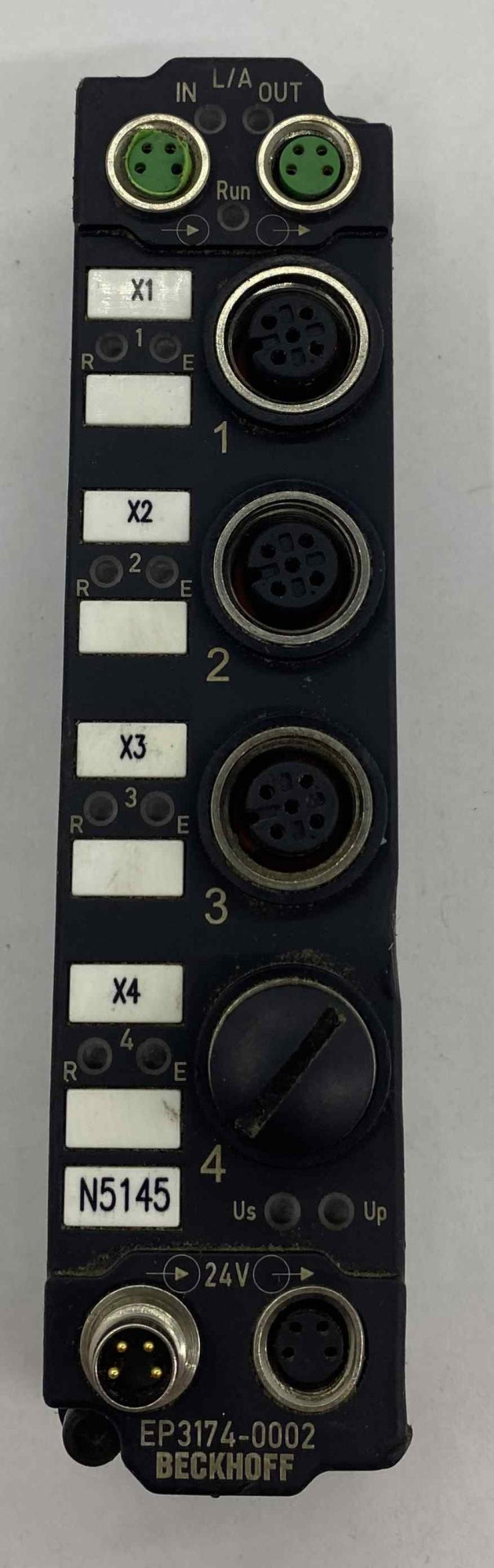

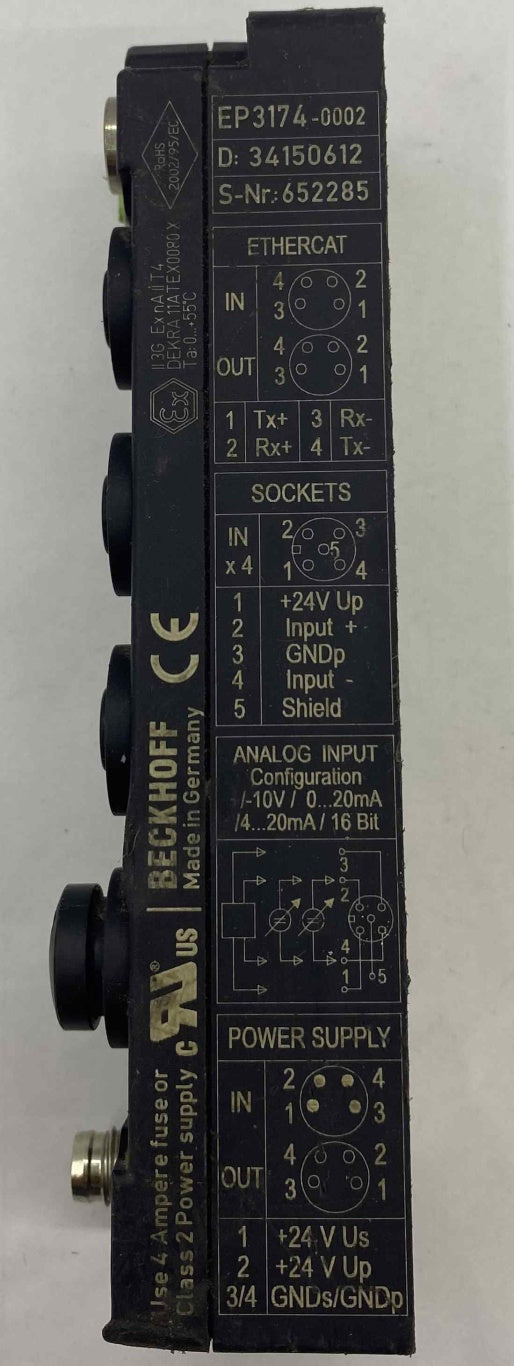

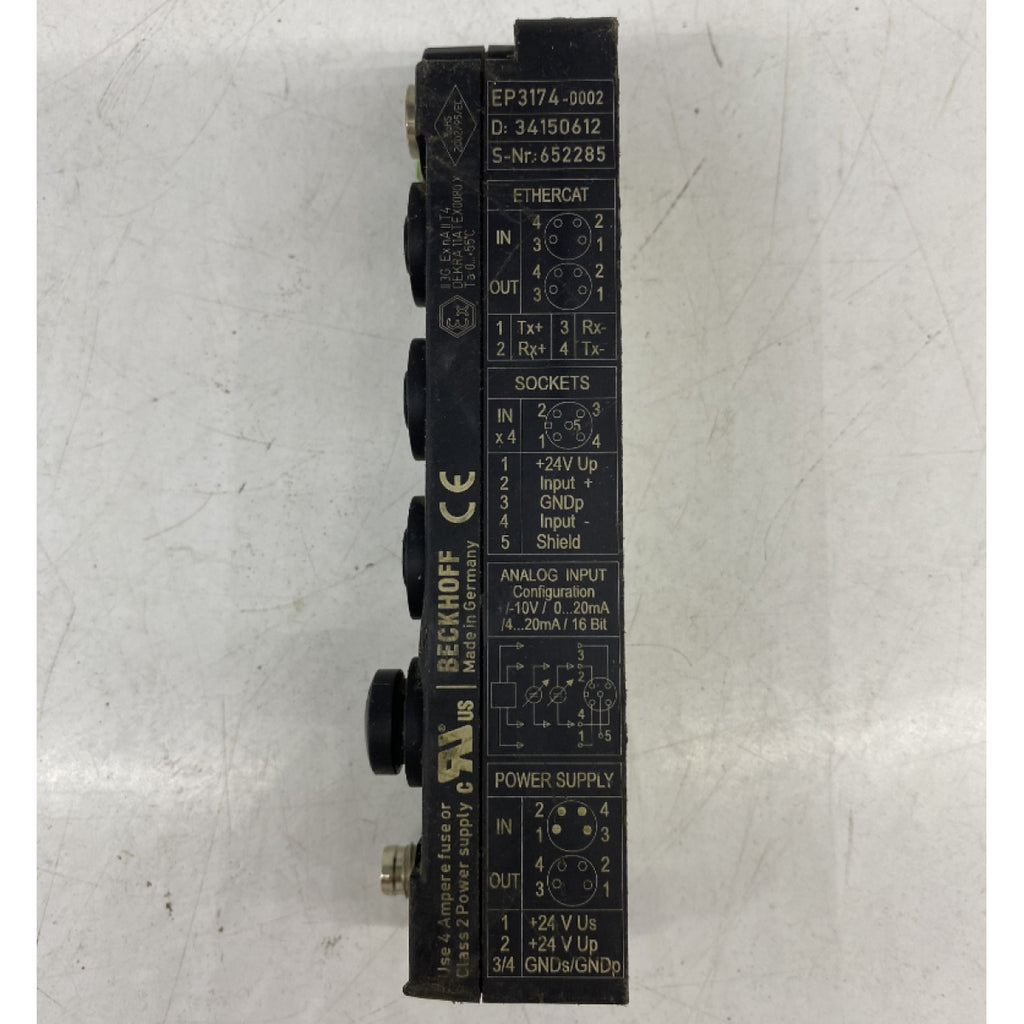

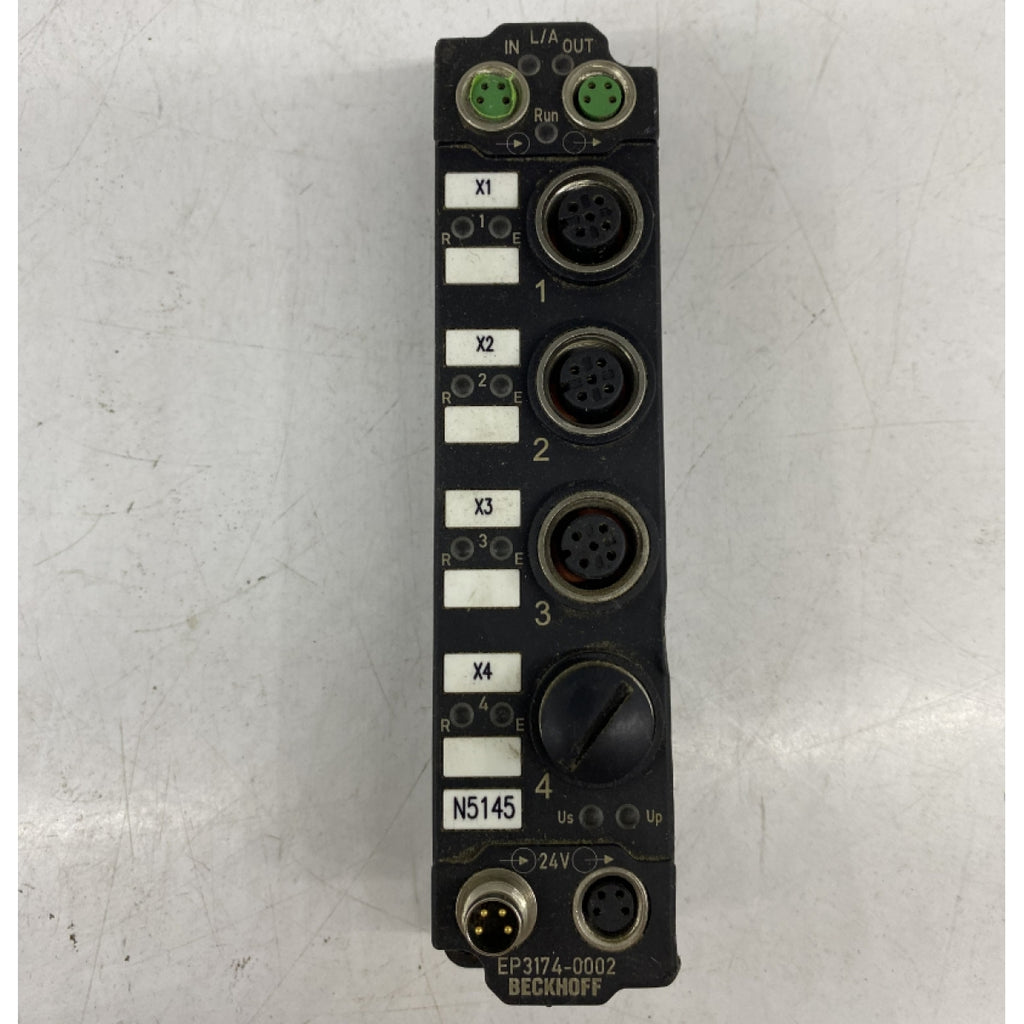

Protocol

EtherCAT

Bus interface

2 x M8 socket, 4-pin, a-coded, shielded

Number of inputs

4 (differential)

Input connections

M12 x 1, 5-pin, a-coded

Conversion time

~ 100 µs

Resolution

16 bit (incl. sign)

Signal type

-10/0…+10 V | 0/4…20 mA, parameterizable per channel

Common-mode voltage UCM

max. 35 V

Internal resistance

> 200 kΩ | typ. 85 Ω + diode voltage

Measurement error/uncertainty

< ±0.3% (relative to full scale value)

Input filter limit frequency

5 kHz

Nominal voltage

24 V DC (-15%/+20%)

Distributed clocks

yes

Input filter

configurable

Sensor supply

from load supply voltage UP

Current consumption from US

120 mA

Power supply connection

feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded

Electrical isolation

500 V

Special features

current or voltage parameterizable

Weight

approx. 165 g

Operating temperature

-25…+60°C

Storage temperature

-40…+85°C

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP65/66/67 (conforms to EN 60529)/variable

Approvals/markings

CE, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex ec IIC T4 Gc
Ex tc IIIC T135 °C Dc
