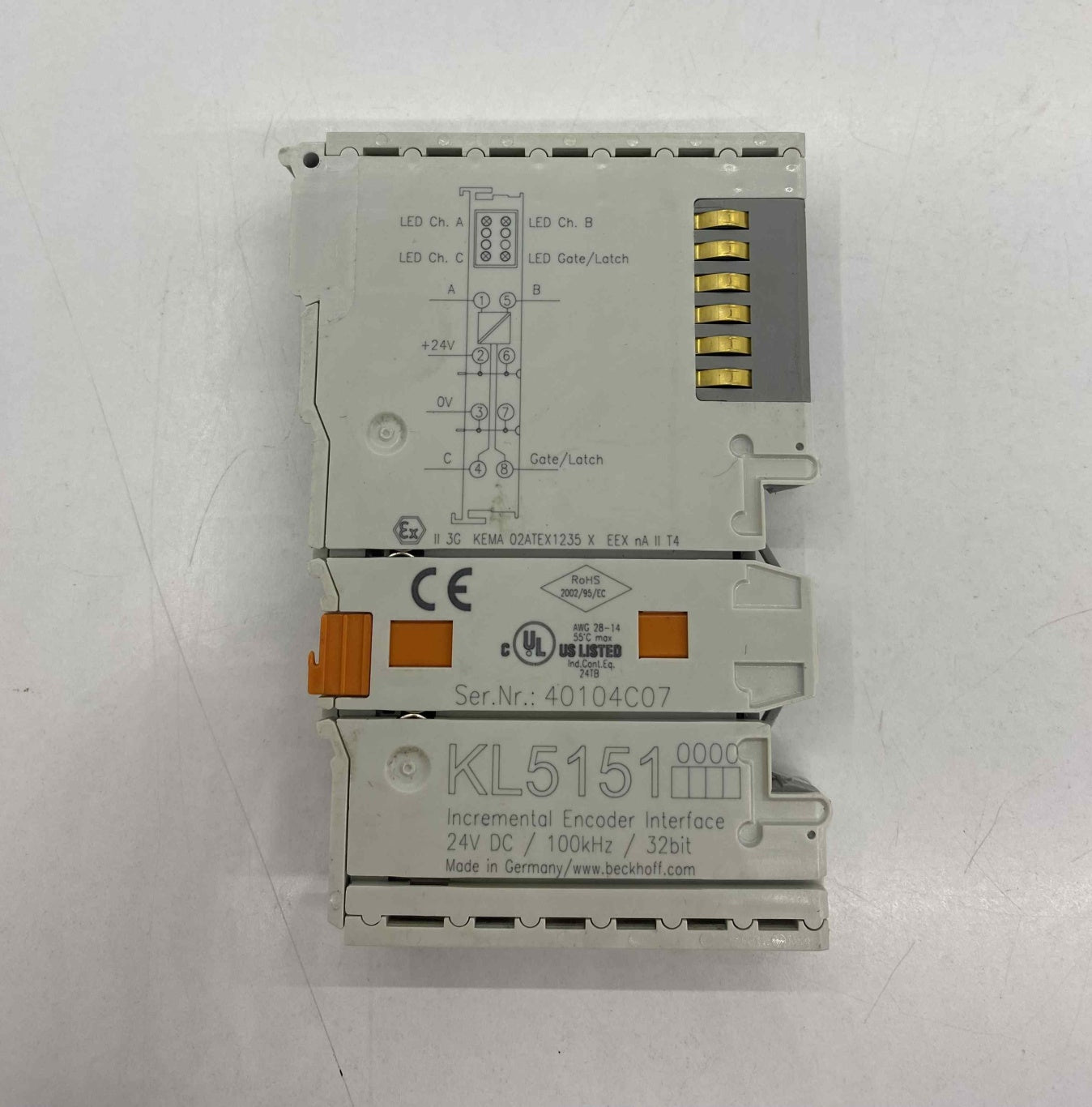

Technology

incremental encoder interface 24 V DC, EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA

Number of channels

1 incremental encoder

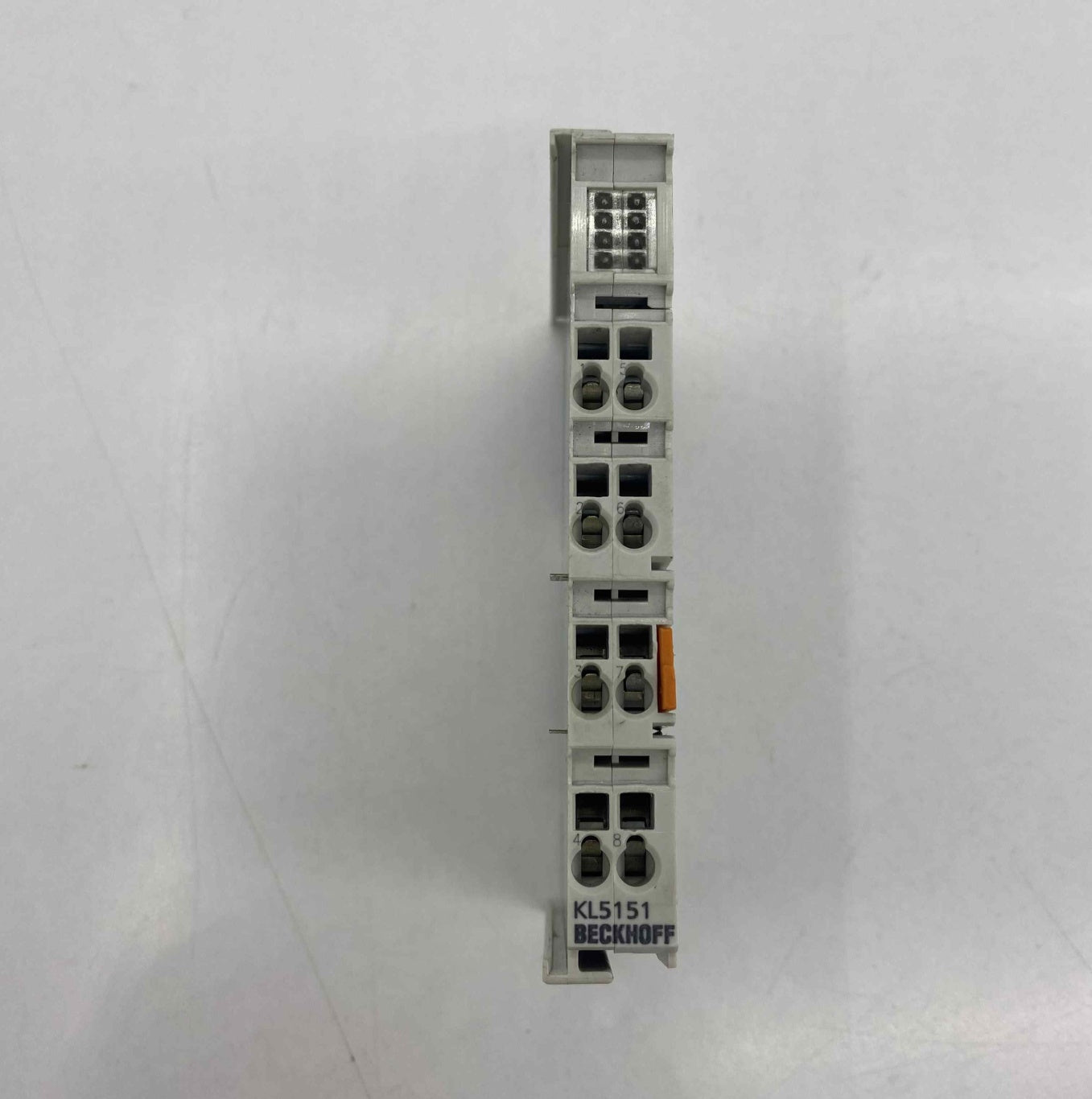

Encoder connection

A, B, C, gate/latch, 24 V

Sensor inputs

1

Encoder operating voltage

24 V DC

Encoder output current

–

Counter

32 bit, binary

Limit frequency

400,000 increments/s (with 4-fold evaluation)

Quadrature decoder

4-fold evaluation

Zero-pulse latch

32 bit

Commands

read, set, enable

Power supply

24 V DC (-15%/+20%)

Current consumption power contacts

–

Current consumption K-bus

typ. 40 mA

Bit width in the process image

input/output: 2 x 32 bit data, 2 x 8 bit control/status

Weight

approx. 50 g

Operating temperature

-25…+60°C

Storage temperature

-40…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Plug-in wiring level

for all KSxxxx Bus Terminals

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
