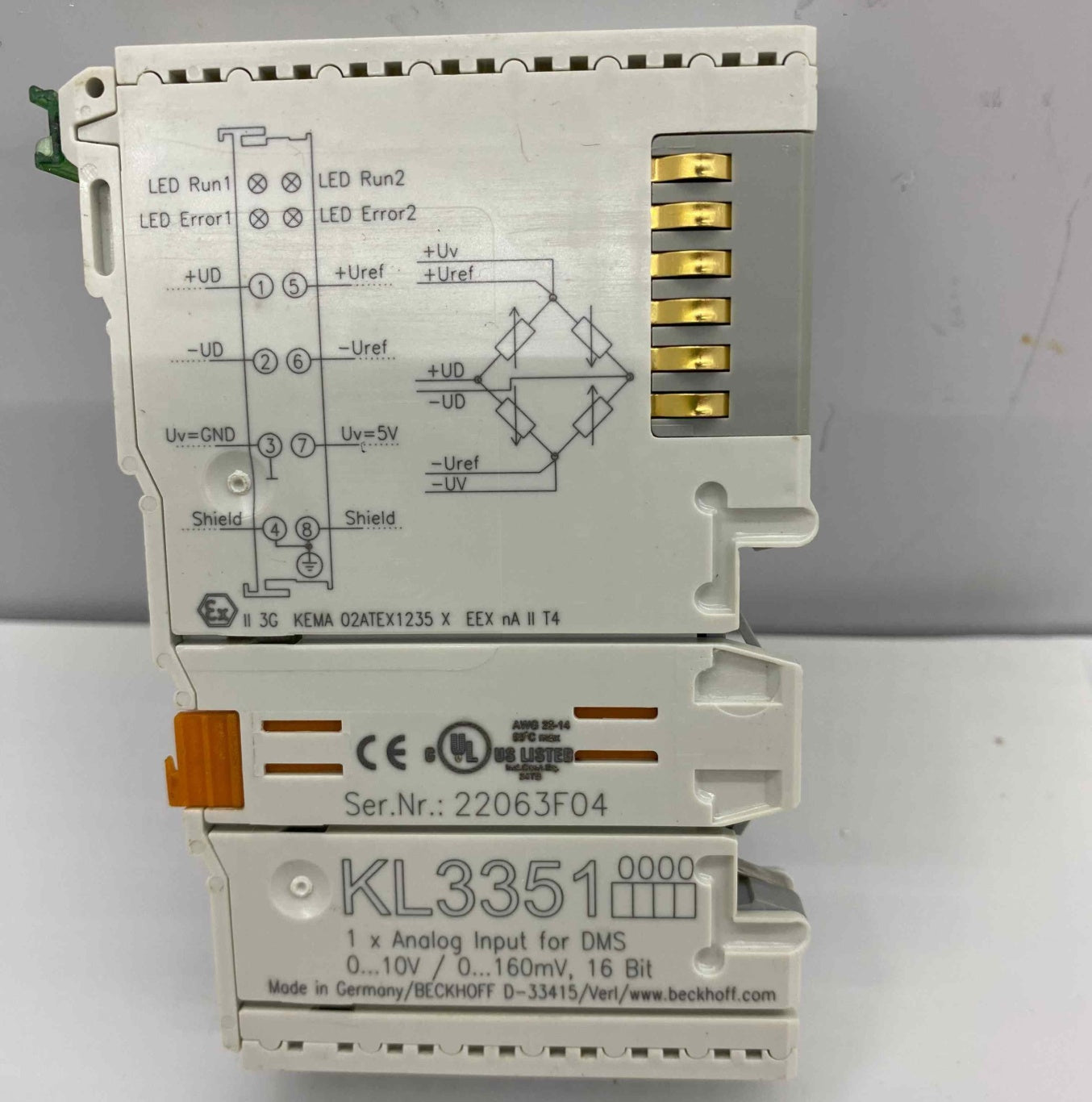

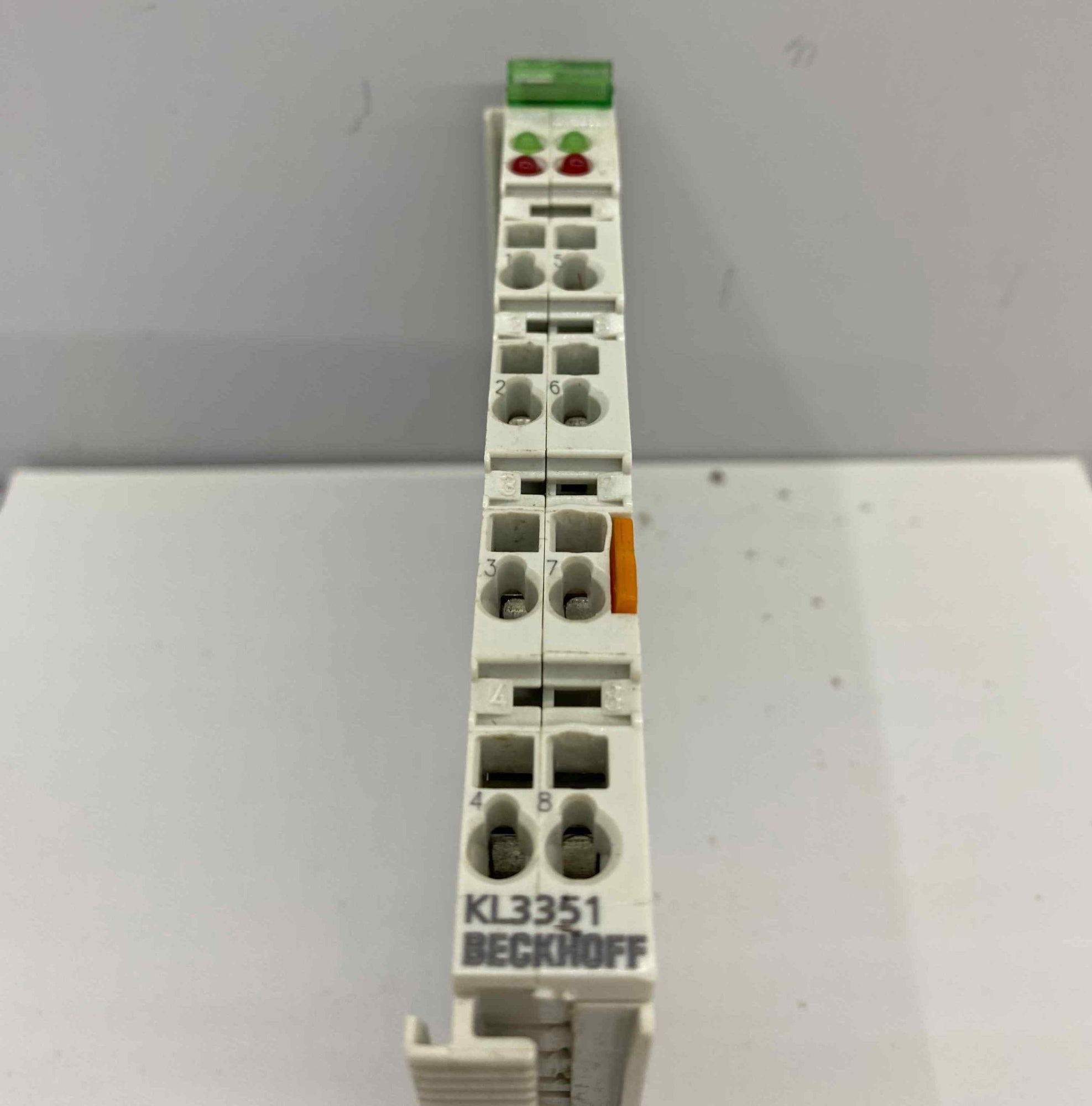

Number of inputs

2, for 1 resistor bridge

Power supply

via the K-bus

Signal voltage UD

-16…+16 mV, configurable

Signal voltage UREF

±10 V

Technology

strain gauge connection

Internal resistance

> 200 kΩ (UREF), > 1 MΩ (UD)

Power supply UV

5 V DC, max. 20 mA

Conversion time

< 250 ms, configurable

Filter

50 Hz, configurable

Resolution

16 bit

Measurement error/uncertainty

< ±0.1% (relative to full scale value)

Current consumption power contacts

– (no power contacts)

Current consumption K-bus

typ. 65 mA

Bit width in the process image

input: 2 x 16 bit data (2 x 8 bit control/status optional)

Special features

with internal bridge supply

Weight

approx. 70 g

Operating temperature

0…55°C

Storage temperature

-25…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Plug-in wiring level

for all KSxxxx Bus Terminals

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
