Connection technology

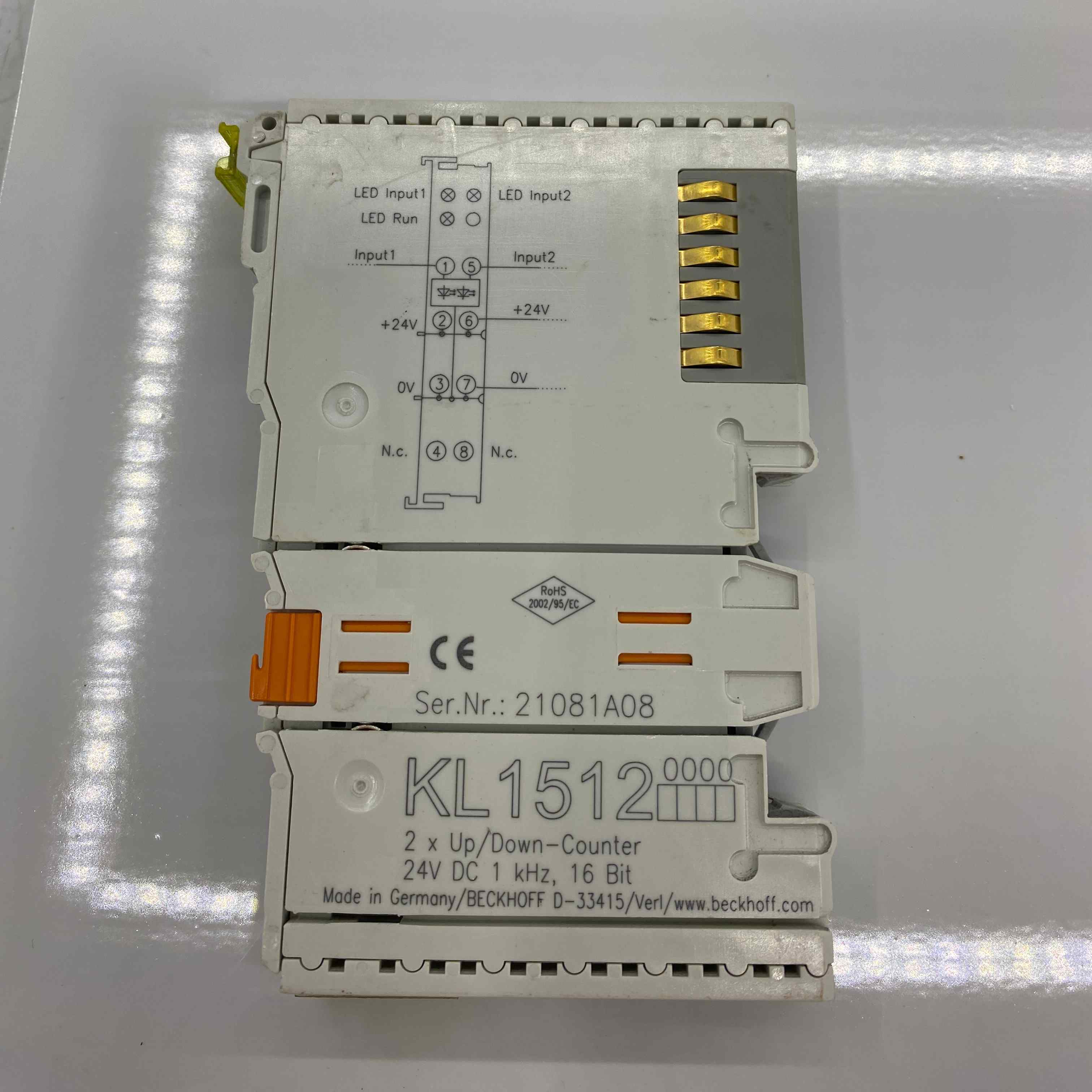

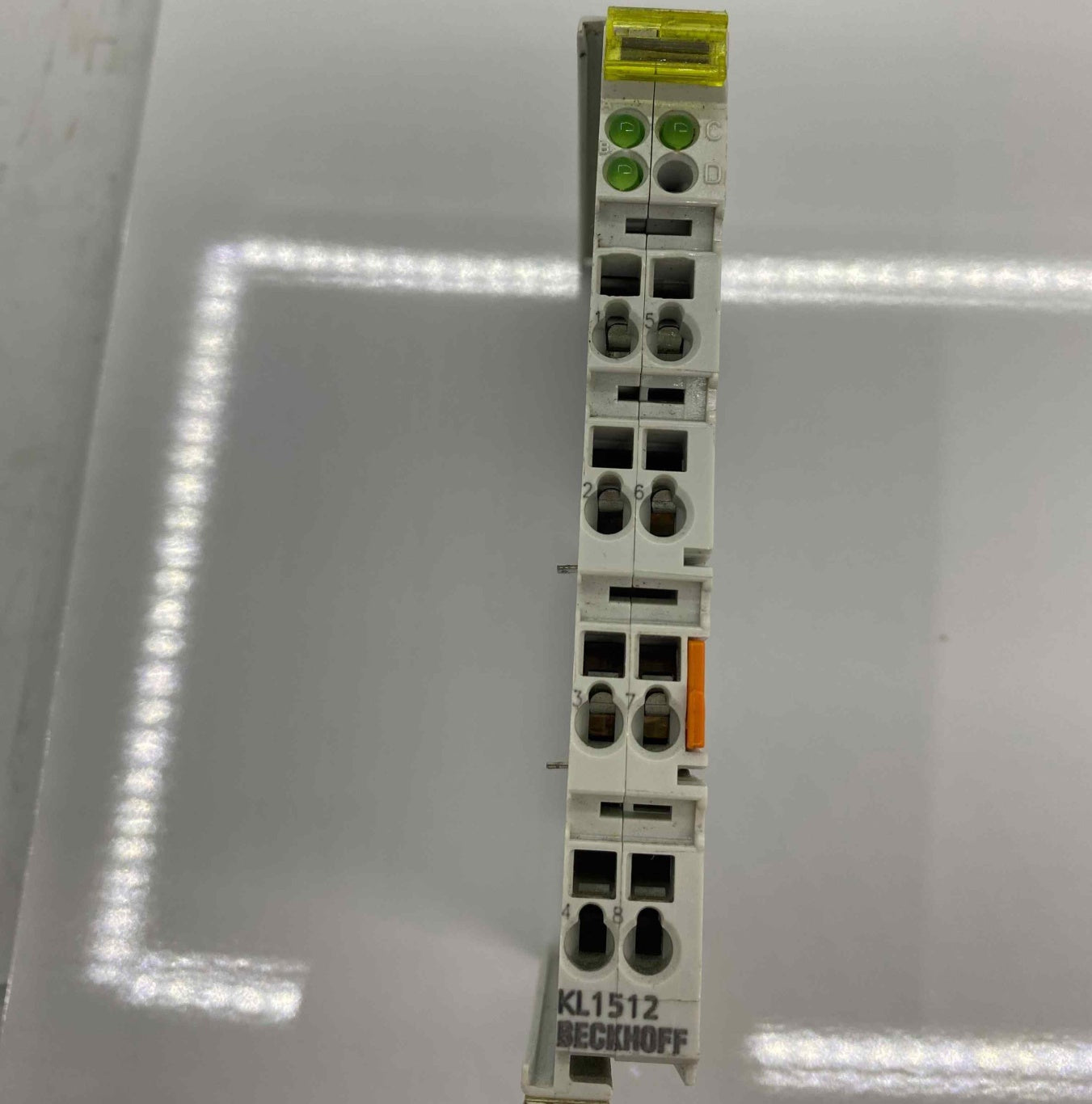

2 x up or down counter

Specification

EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA

Number of counters

1 or 2

Nominal voltage

24 V DC (-15%/+20%)

“0” signal voltage

-3…+5 V (EN 61131-2, type 1)

“1” signal voltage

15…30 V (EN 61131-2, type 1)

Counting frequency

max. 1 kHz

Counter depth

16 bit

Input current

typ. 5 mA (EN 61131-2, type 1)

Current consumption K-bus

typ. 50 mA

Current consumption power contacts

load only

Electrical isolation

500 V (K-bus/field potential)

Bit width in the process image

input/output: 16 bit data, 8 bit control/status

Configuration

via the Bus Coupler or the controller

Special features

set counters

Weight

approx. 50 g

Storage temperature

-40…+85°C

Operating temperature

-25…+60°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Plug-in wiring level

for all KSxxxx Bus Terminals

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
