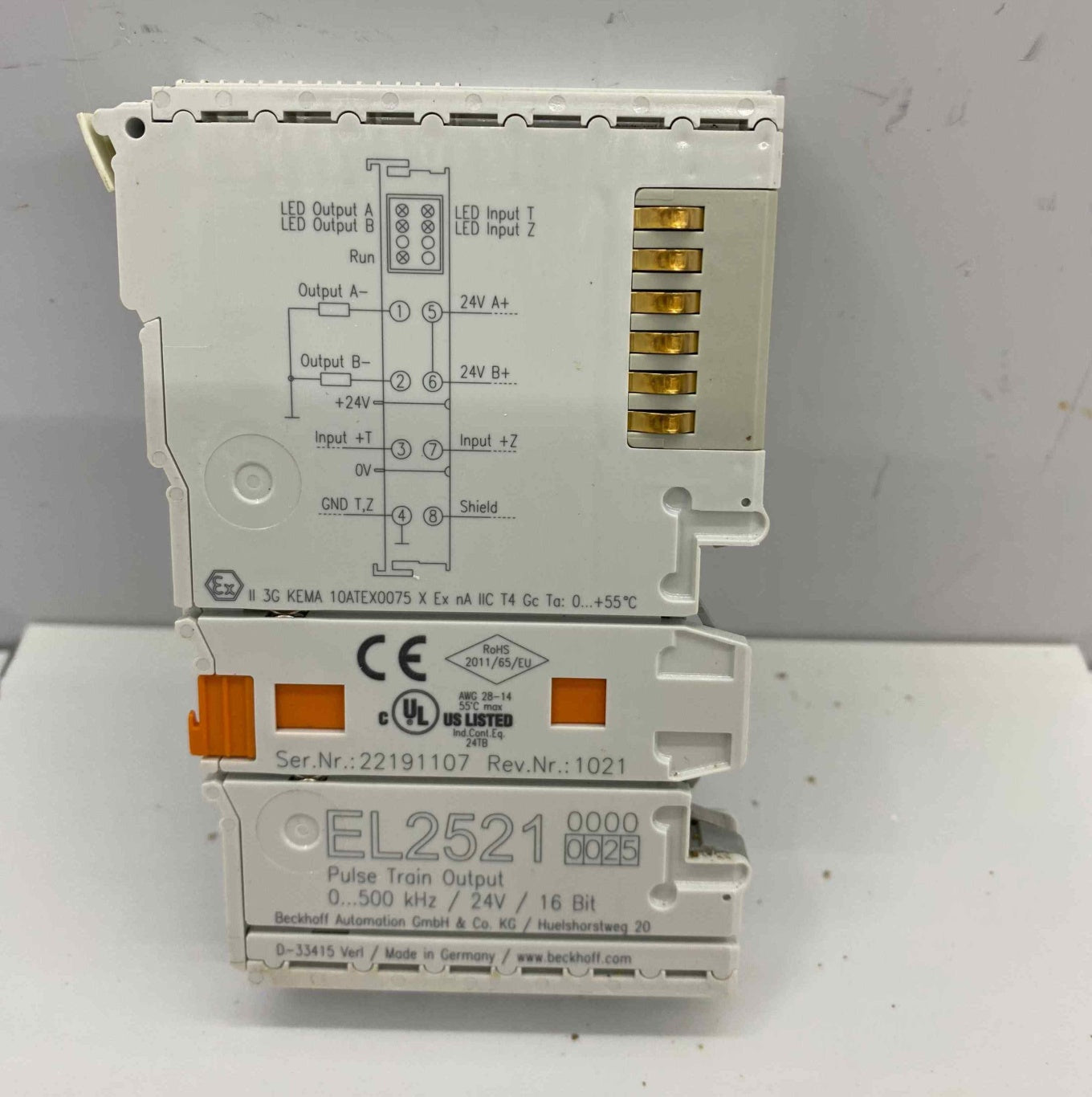

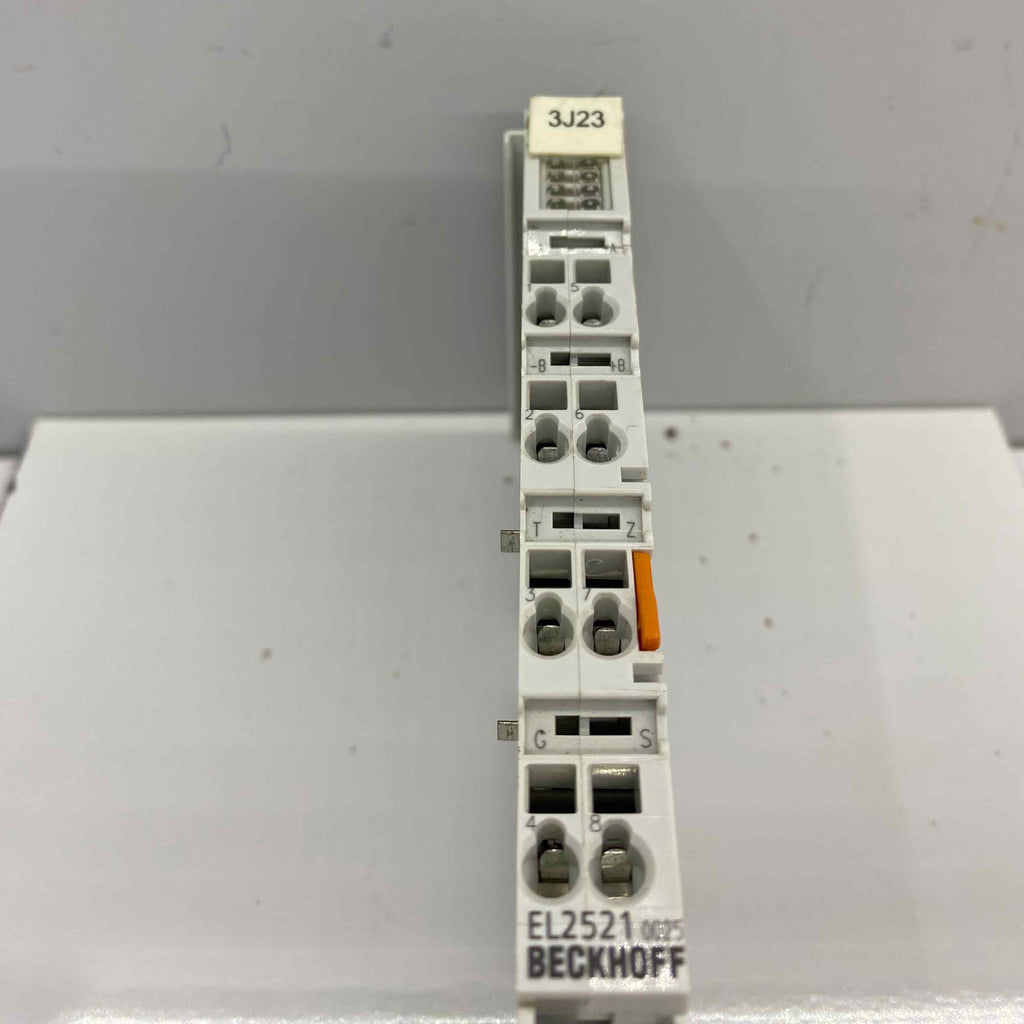

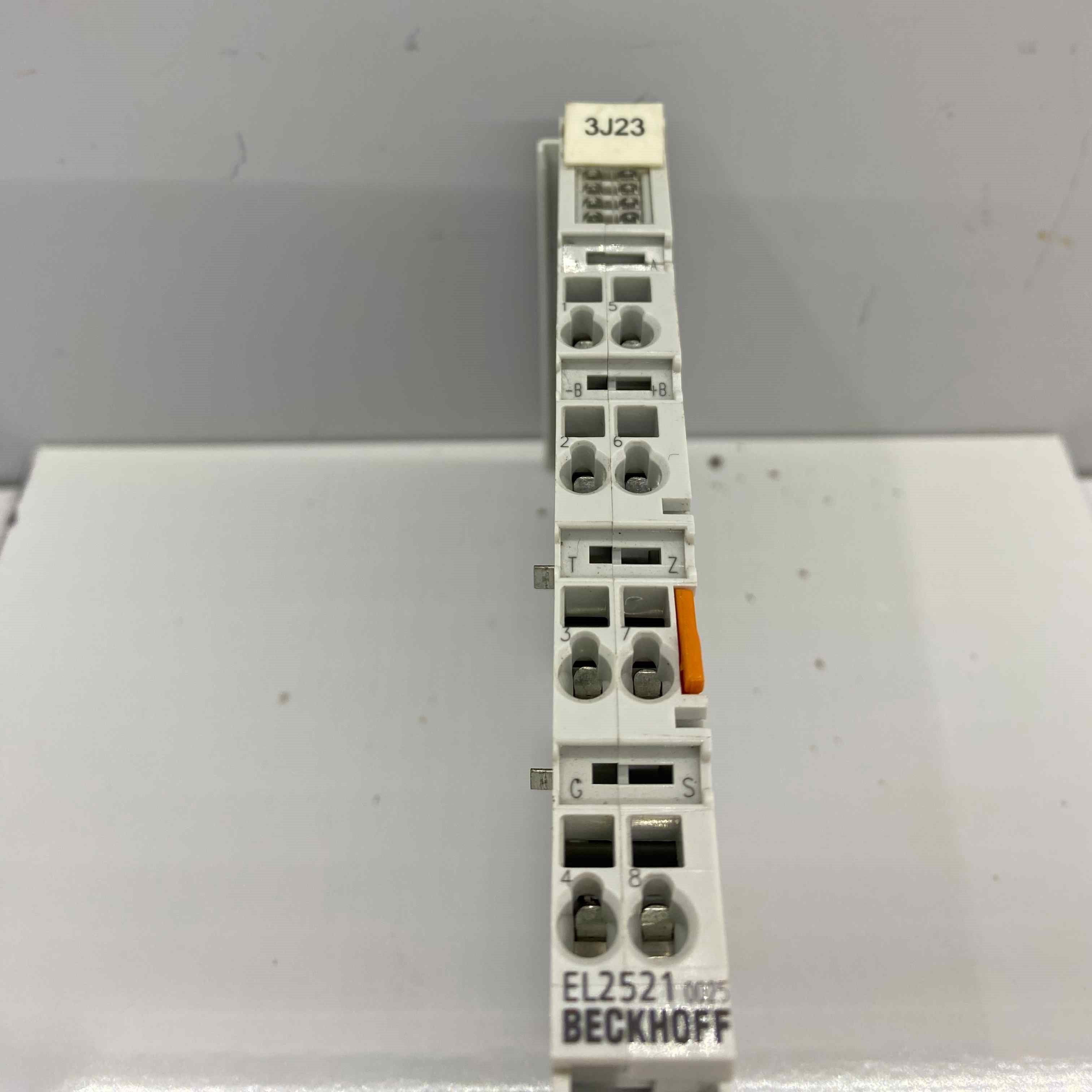

Connection technology

pulse train (frequency output)

Number of outputs

1 channel (2 differential outputs A, B)

Number of inputs

2 (+T, +Z)

Load type

min. 120 Ω

Distributed clocks

yes

Output specification

RS422, differential

Max. output current

0.5 A

Base frequency

0…500 kHz, 50 kHz default

Resolution

max. 15 bit

Current consumption E-bus

typ. 280 mA (load-dependent)

Power supply

via the E-bus

Current consumption power contacts

–

Electrical isolation

500 V (E-bus/field potential)

Special features

pulse output with variable frequency: frequency modulation, pulse direction specification, AB incremental encoder simulation with connection to TwinCAT NC, ramp function, travel distance control

Weight

approx. 50 g

Operating temperature

0…55°C

Storage temperature

-25…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Plug-in wiring level

for all ESxxxx terminals

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
