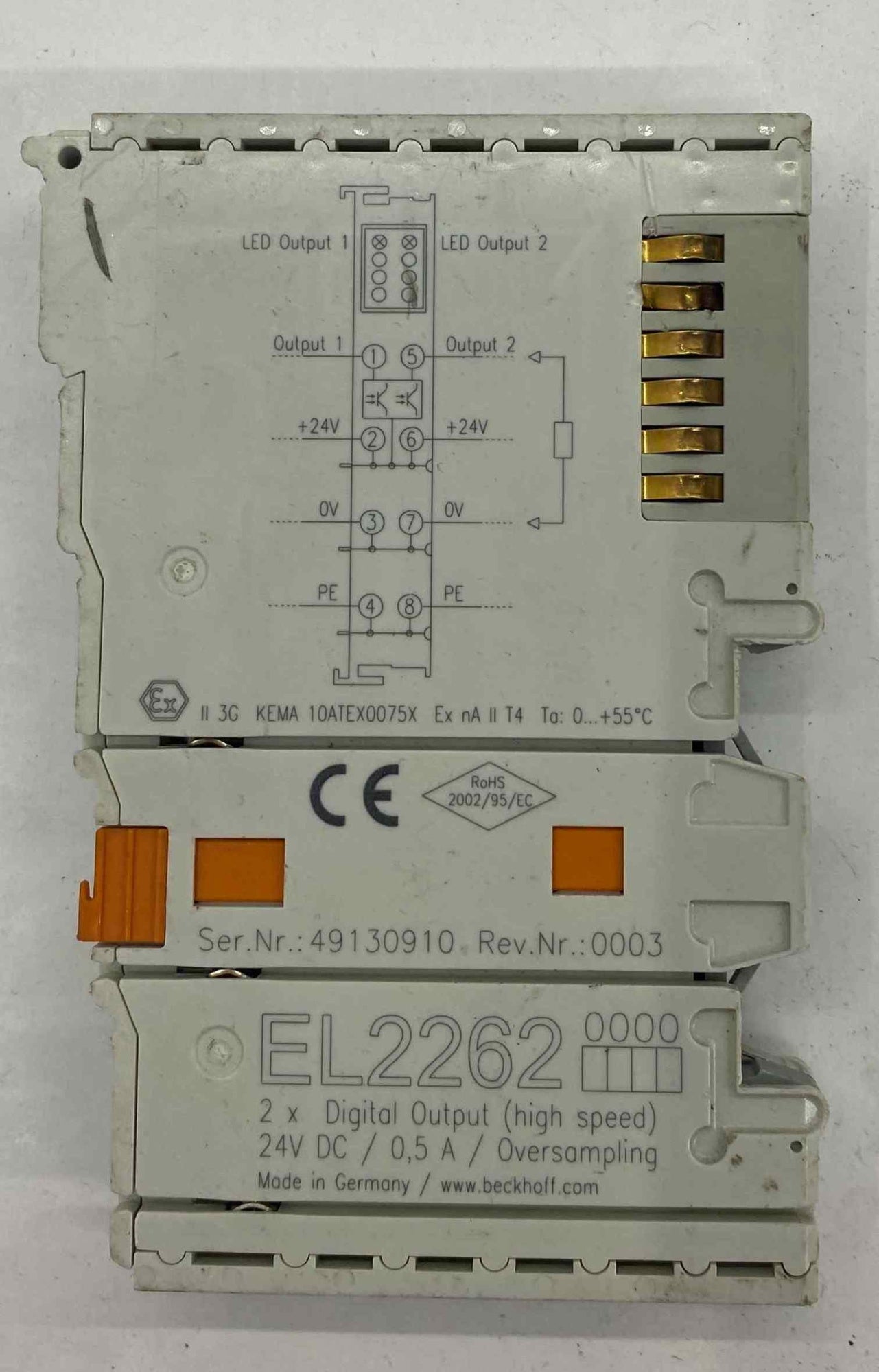

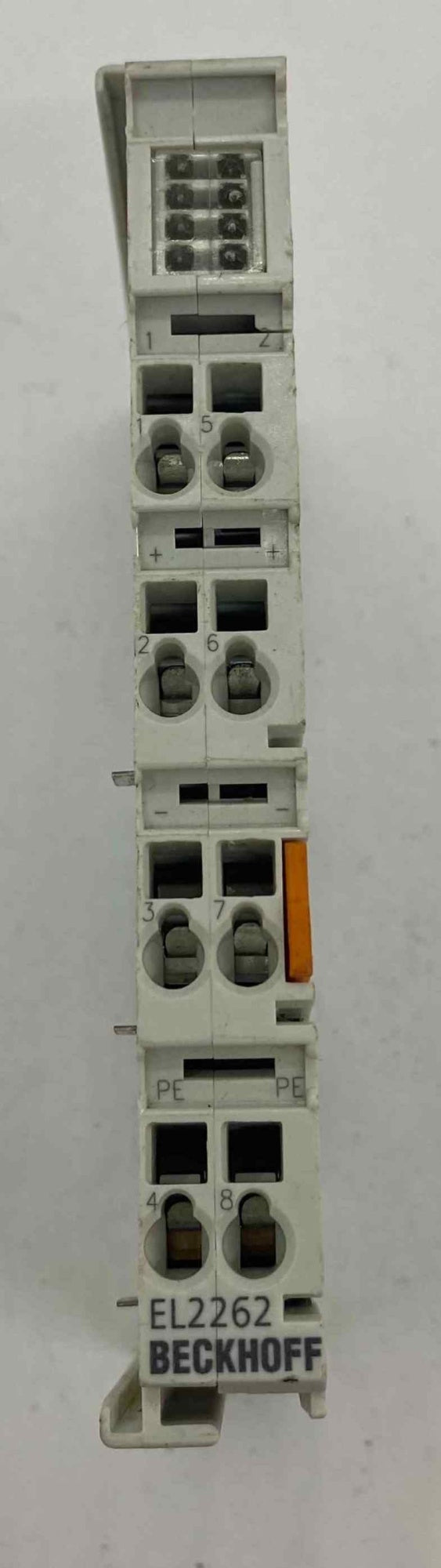

Connection technology

4-wire

Number of outputs

2

Nominal voltage

24 V DC (-15%/+20%)

Load type

ohmic, inductive, lamp load

Oversampling factor

n = integer multiple of the cycle time, 1…1000

Distributed clocks

yes

Distributed clock precision

<< 1 µs

Max. output current

0.5 A (short-circuit proof in push operation) per channel

Output stage

push-pull

Short-circuit current

typ. < 1.5 A

Reverse voltage protection

yes

Current limitation

typ. 4 A/150 μs

Breaking energy

< 150 mJ/channel

Switching times

typ. T_ON: < 1 µs, typ. T_OFF: < 1 µs

Output rate

max. 1 Msample/s, min. cycle 1 µs

Current consumption E-bus

typ. 70 mA

Current consumption power contacts

typ. 35 mA + load

Bit width in the process image

n x 2 outputs + 32 bit CycleCounter + 32 bit StartTimeNextOutput

Configuration

via TwinCAT System Manager

Electrical isolation

500 V (E-bus/field potential)

Special features

up to 1000 x oversampling, max. 1 Msample/s, min. output cycle 1 µs

Weight

approx. 60 g

Operating temperature

0…55°C

Storage temperature

-25…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Plug-in wiring level

for all ESxxxx terminals

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
