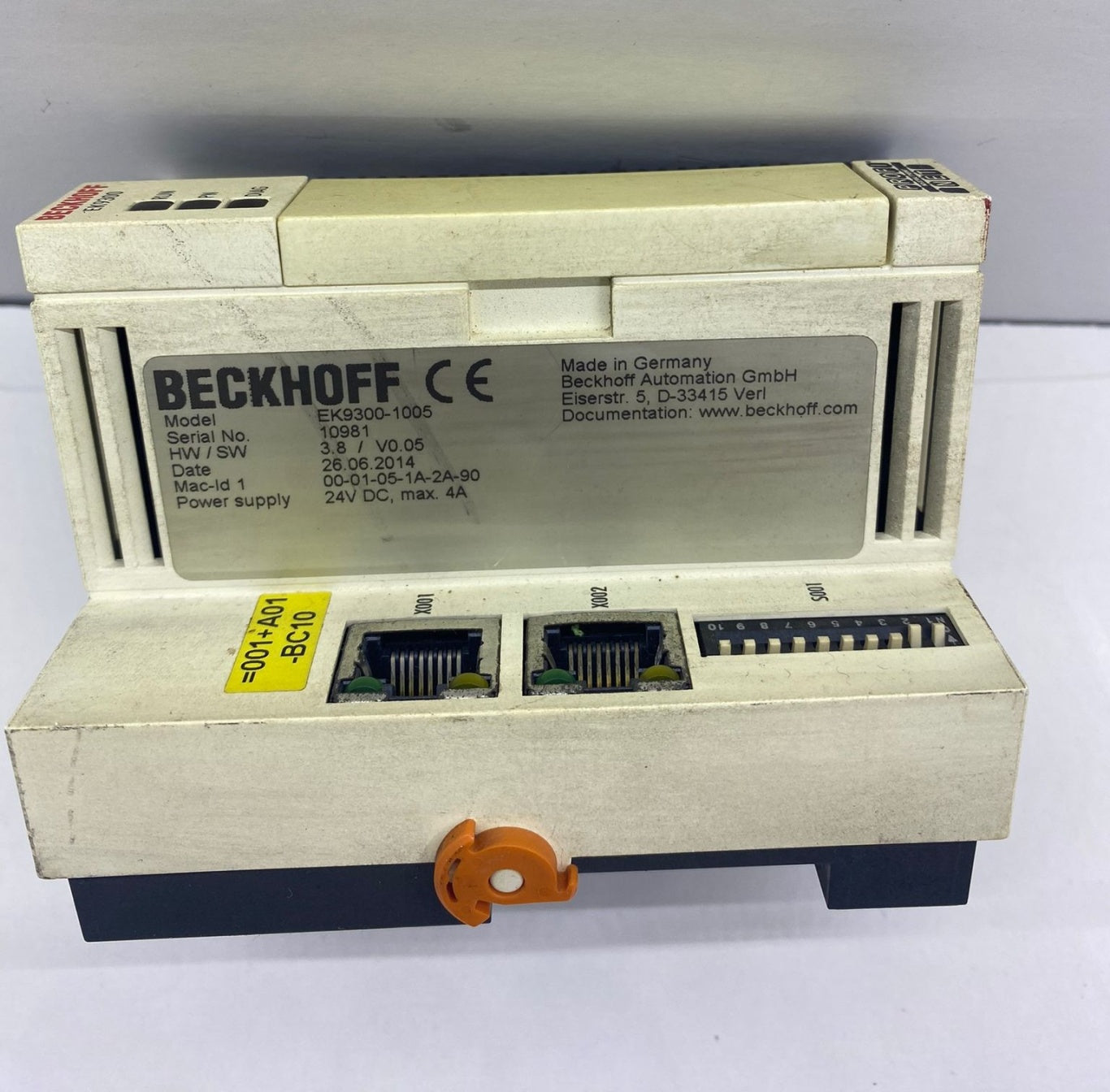

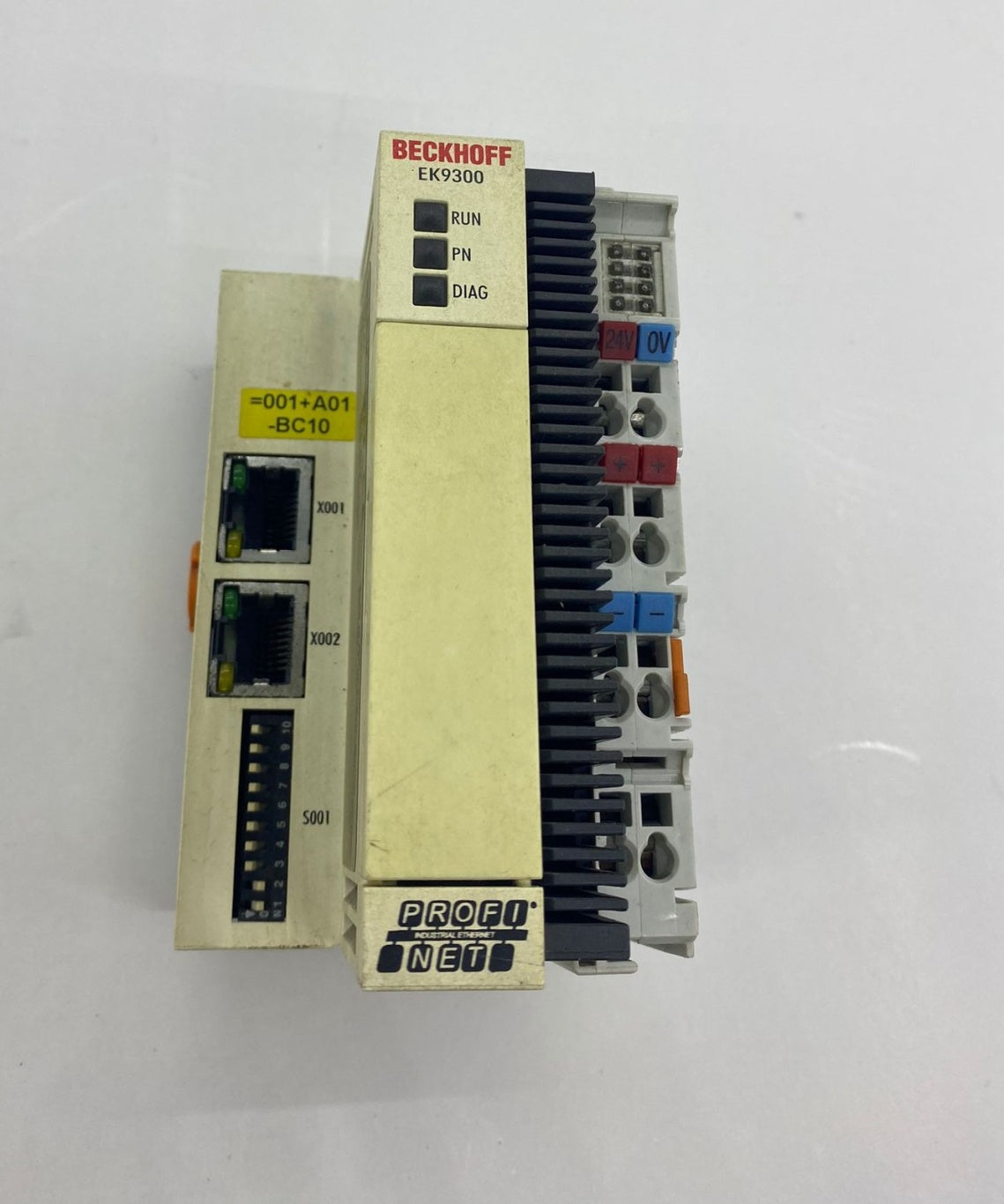

Task within EtherCAT system

coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks

Number of EtherCAT Terminals

depending on the process data size

Type/number of peripheral signals

depending on the process data size

Protocol

PROFINET RT

Data transfer rates

100 Mbit/s

Configuration

not required

Bus interface

2 x RJ45 (switched)

Power supply

24 V DC (-15%/+20%)

Input current

typ. 120 mA + (total E-bus current)/4

Current consumption E-bus

up to 2 A

Power contacts

max. 24 V DC/max. 10 A

Electrical isolation

500 V (power contact/supply voltage/Ethernet)

Dimensions (W x H x D)

64 mm x 100 mm x 73 mm

Operating temperature

-25…+60°C

Storage temperature

-40…+85°C

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

Protect. rating/installation pos.

IP20/see documentation

Approvals/markings

CE, CCC, UL, ATEX, IECEx, cFMus

Ex marking

ATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc
cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
