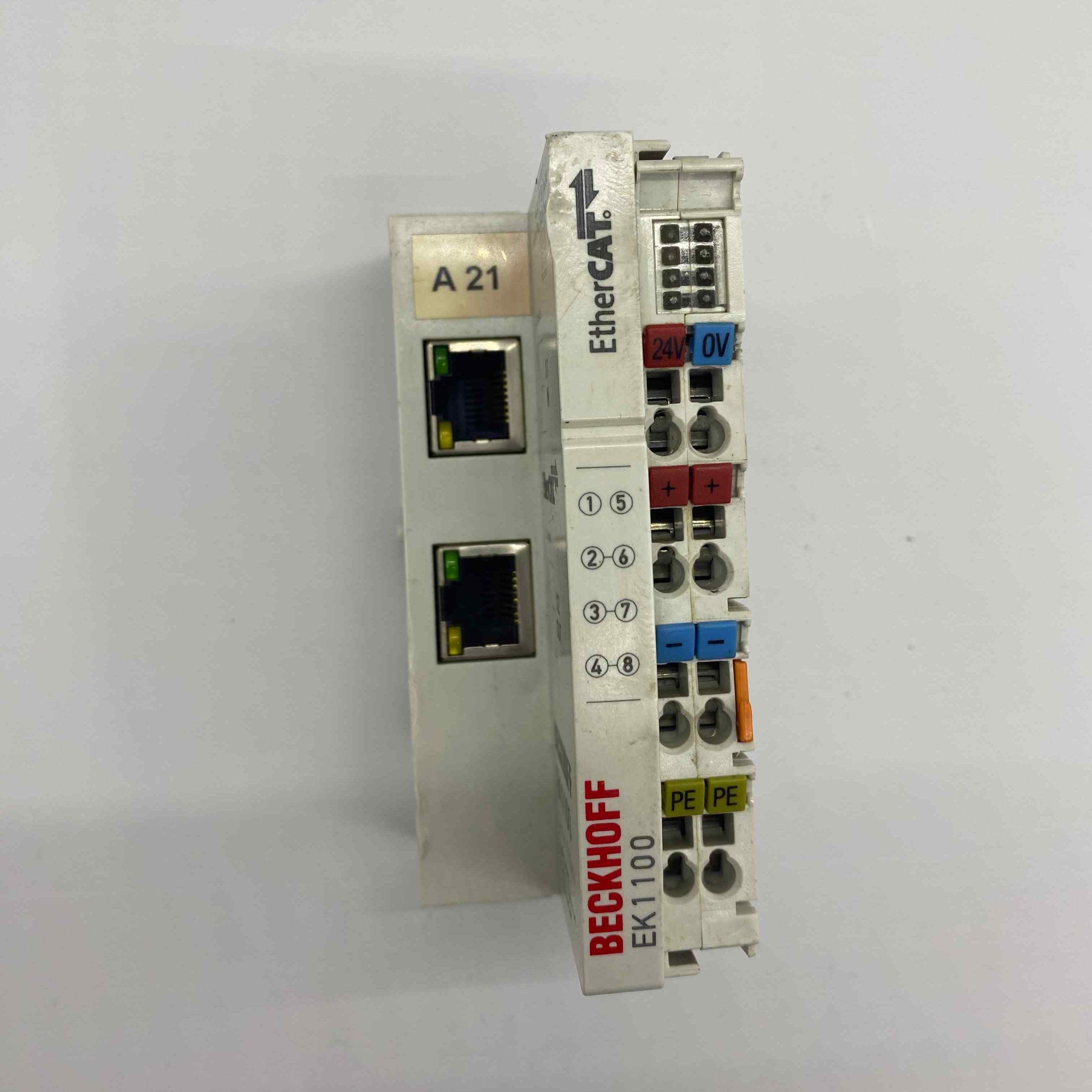

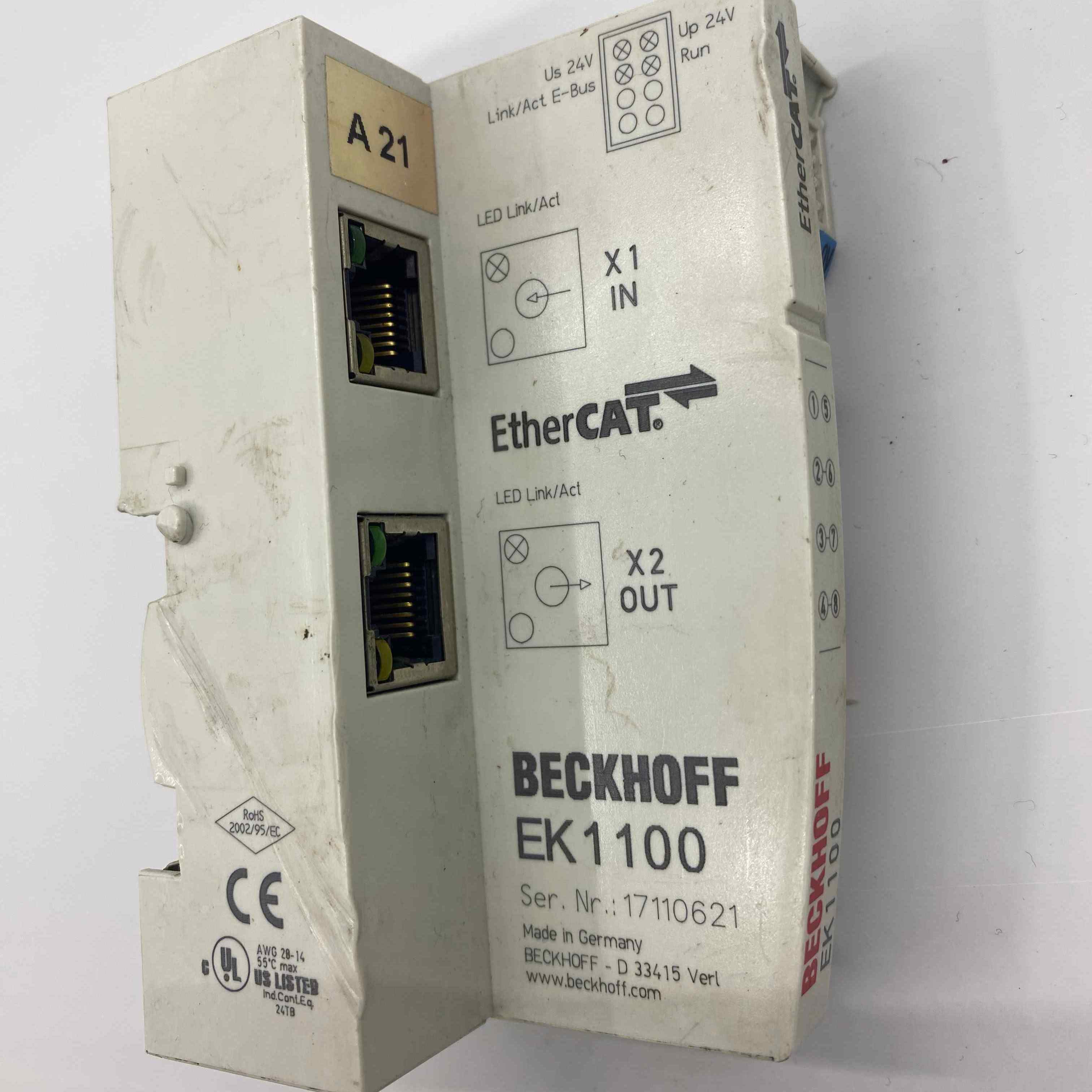

Task within EtherCAT system

coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks

Data transfer medium

Ethernet/EtherCAT cable (min. Cat.5), shielded

Distance between stations

max. 100 m (100BASE-TX)

Number of EtherCAT Terminals

up to 65,534

Protocol

EtherCAT

Delay

approx. 1 µs

Data transfer rates

100 Mbit/s

Bus interface

2 x RJ45

Power supply

24 V DC (-15%/+20%)

Current consumption from U_S

70 mA + (∑ E-bus current/4)

Current consumption from U_P

load

Current supply E-bus

2000 mA

Power contacts

max. 24 V DC/max. 10 A

Electrical isolation

500 V (power contact/supply voltage/Ethernet)

Operating temperature

-25…+60°C

Storage temperature

-40…+85°C

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

Protect. rating/installation pos.

IP20/variable

Approvals/markings

CE, CCC, UL, ATEX, IECEx, DNV, cFMus

Ex marking

ATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc
cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
