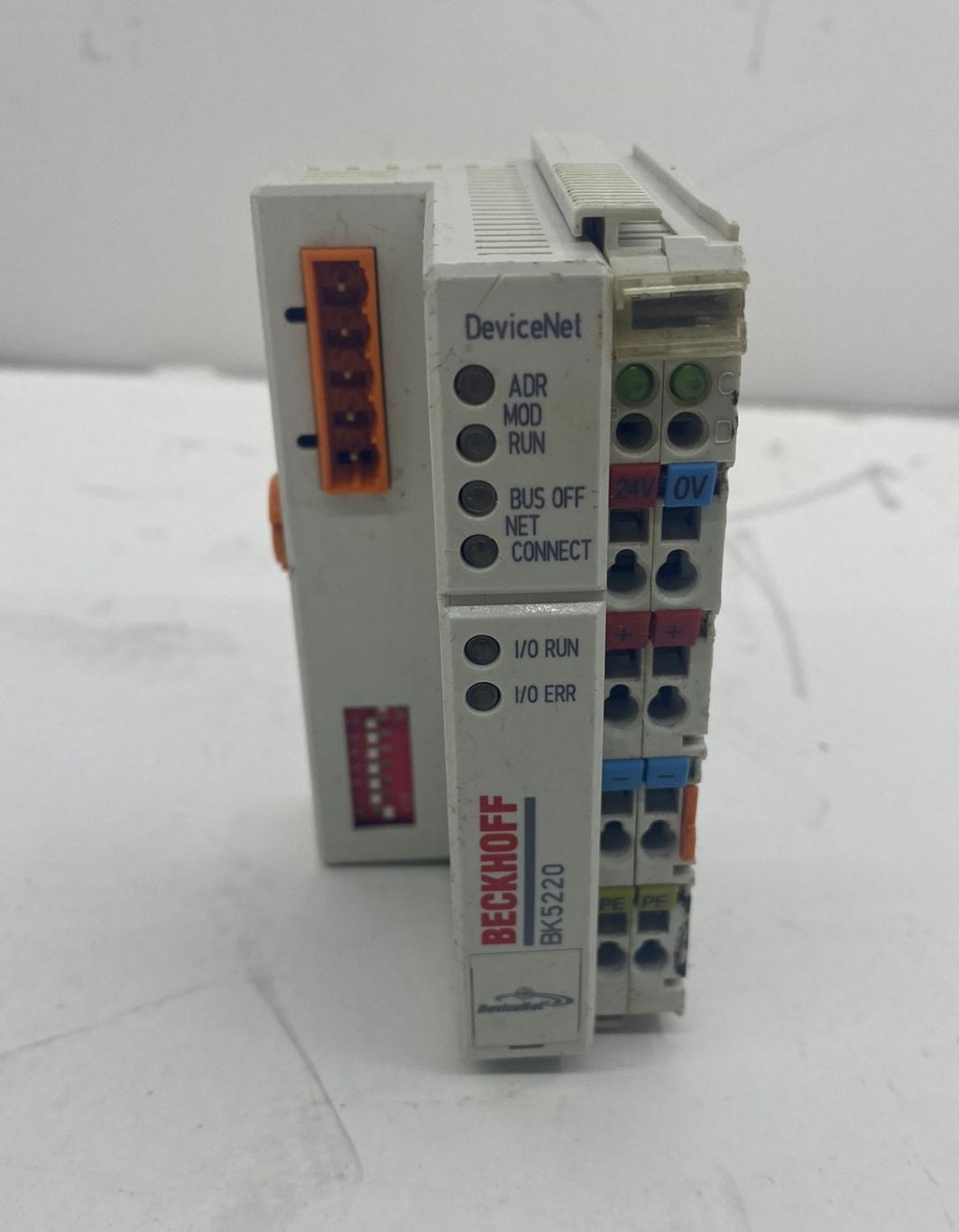

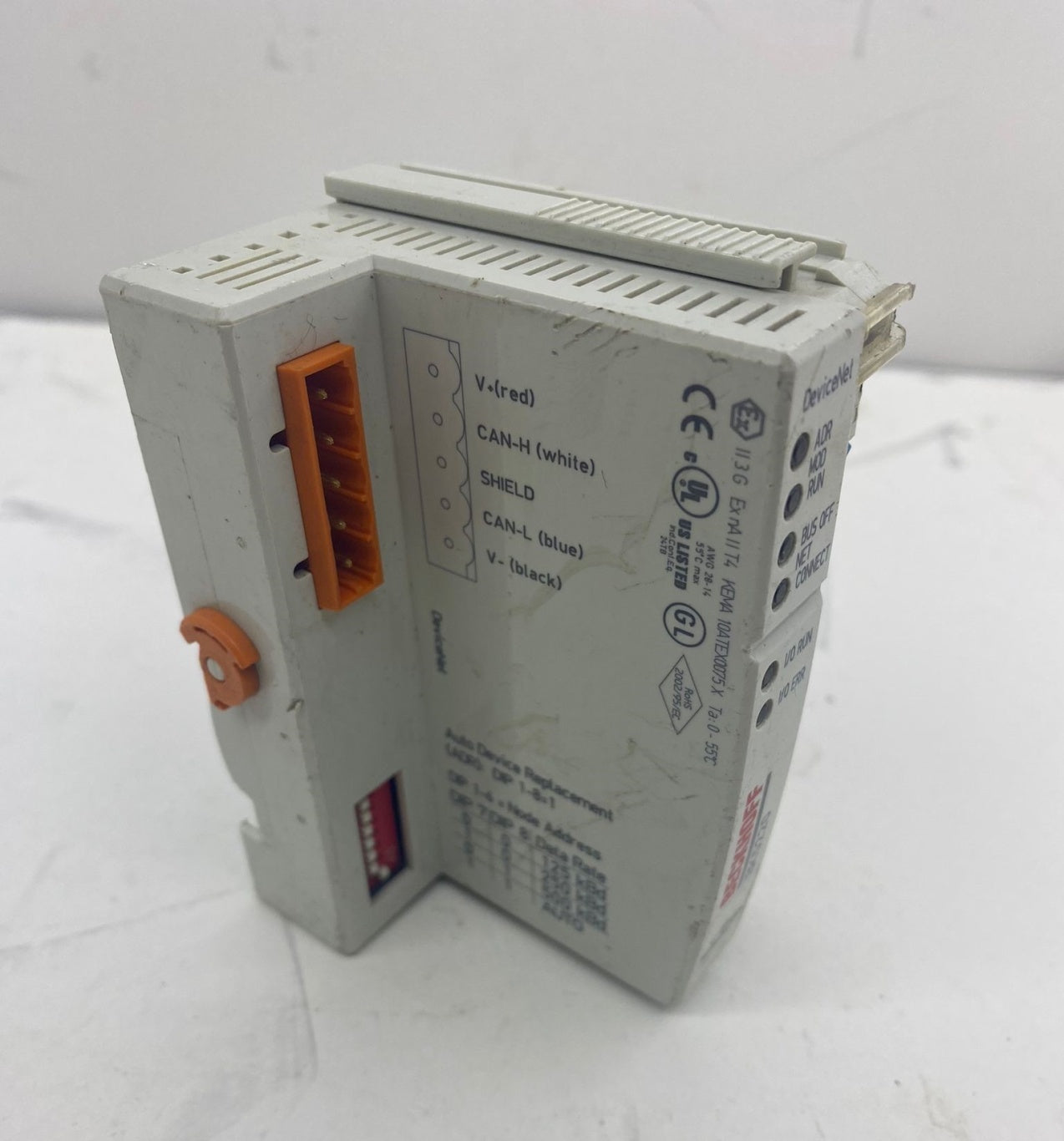

BK5220 | DeviceNet Bus Coupler

Technical data	BK5220
Number of Bus Terminals	64 (255 with K-bus extension)
Max. number of bytes fieldbus	512 byte input and 512 byte output
Digital peripheral signals	1,020 inputs/outputs
Analog peripheral signals	256 inputs/outputs
Configuration	via KS2000 or the controller
Data transfer rates	automatic detection
Bus interface	1 x open pluggable connector, 5-pin, included
Data transfer medium	screened, twisted copper wire with power supply, 5-pin
Power supply	24 V DC (-15%/+20%), through bus cable 11…25 V (conforms to DeviceNet® specification)
Input current	70 mA + (total K-bus current)/4, 500 mA max.
Starting current	approx. 2.5 x continuous current
Recommended fuse	≤ 10 A
Current supply K-bus	1750 mA
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage Bus Coupler)
Operating modes	bit strobe, polling, cyclic, change of state (COS)
Type	communications adapter
Weight	approx. 130 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
