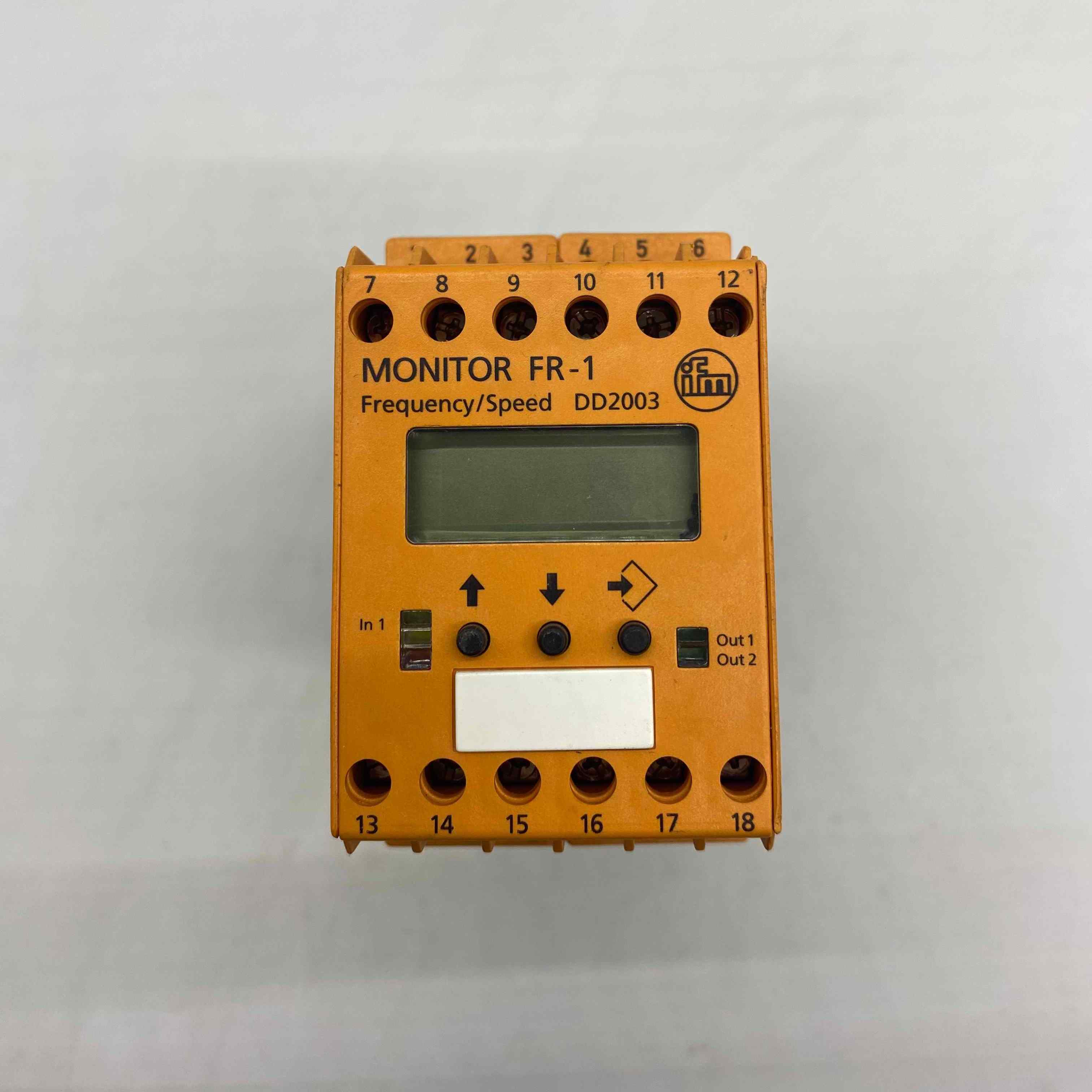

IFM MONITOR FR-1 - DD2003

The FR-1 DD2003 is a robust and stable device that offers monitoring and control functions in industrial processes. The FR-1 DD2003 is a durable industrial control module providing reliable control in automation systems. Monitor FR-1 DD2003 Industrial Control Module FR-1 DD2003 Industrial Control Board Card for industrial control applications. MONITOR FR-1 DD2003 MONITOR MODULE, Monitor fr-1 dd2003 Monitor Module, Display/monitoring module.

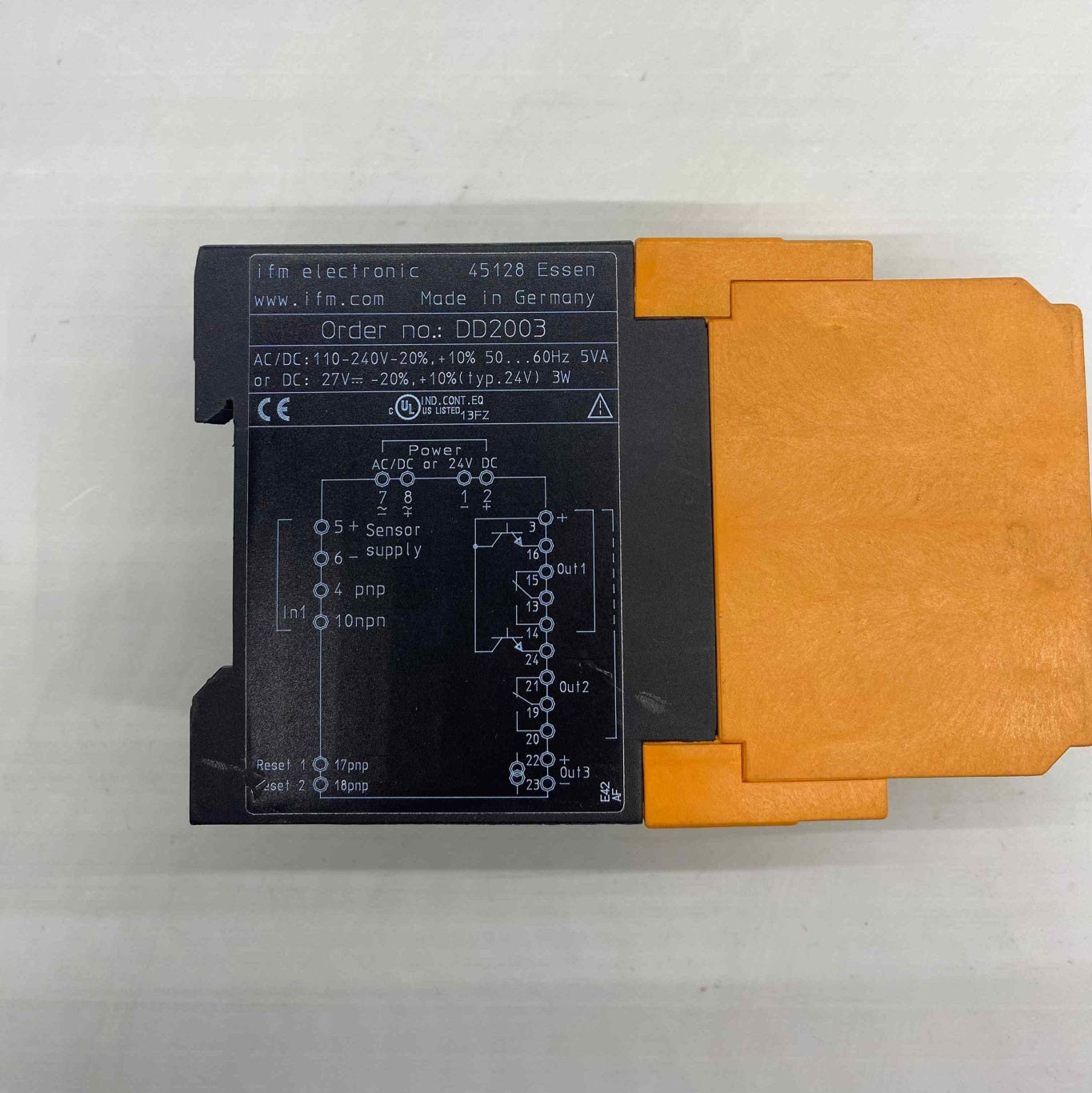

Application single pulse evaluation system with µprocessor for frequency; rotational speed; speed and machine cycles Application Switching function 2 switch points for monitoring overspeed/underspeed and acceptable range Electrical data Nominal voltage [V] 110...240 AC/DC (50...60 Hz) / 27 DC (typ. 24 DC) Voltage tolerance [%] -20...+10 Power consumption [VA] 5 (3 W) Inputs pnp/npn; NAMUR (24 V) auxiliary supply: typ. 24 V DC / 15 mA; short-circuit protected threshold pnp: > 12 V on; < 5 V off threshold npn: > 15 V off; < 8 V on input frequency (max): 5 kHz (corresponds to min. pulse length / space 0.1 ms) Inputs Outputs Relay Contact rating 6 A (250 V AC); B300, R300 Transistor pnp; external supply switching voltage/current: 24 V DC / max. 15 mA; short-circuit protected Transistor outputs analogue Analogue output 0/4...20 mA
