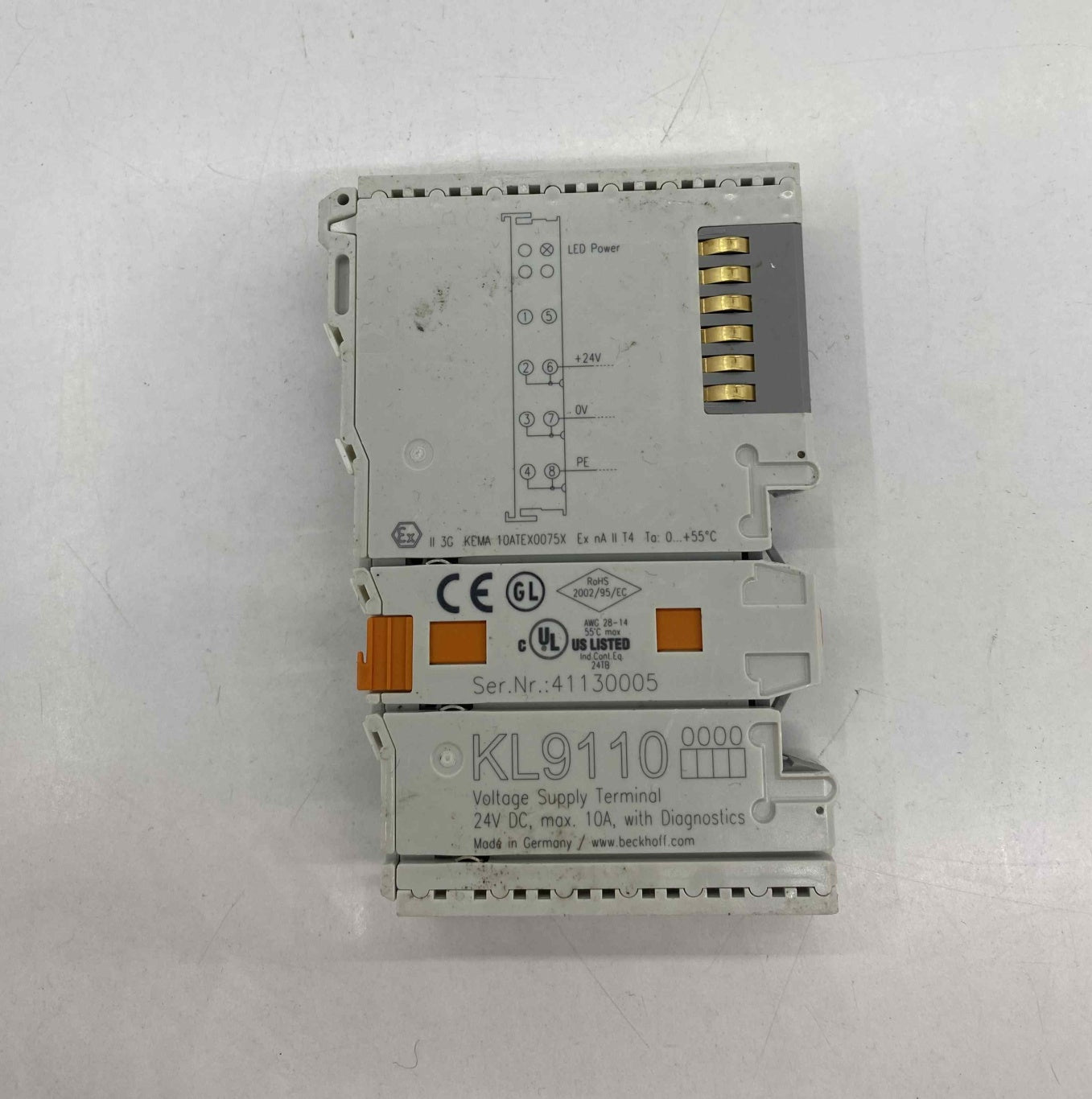

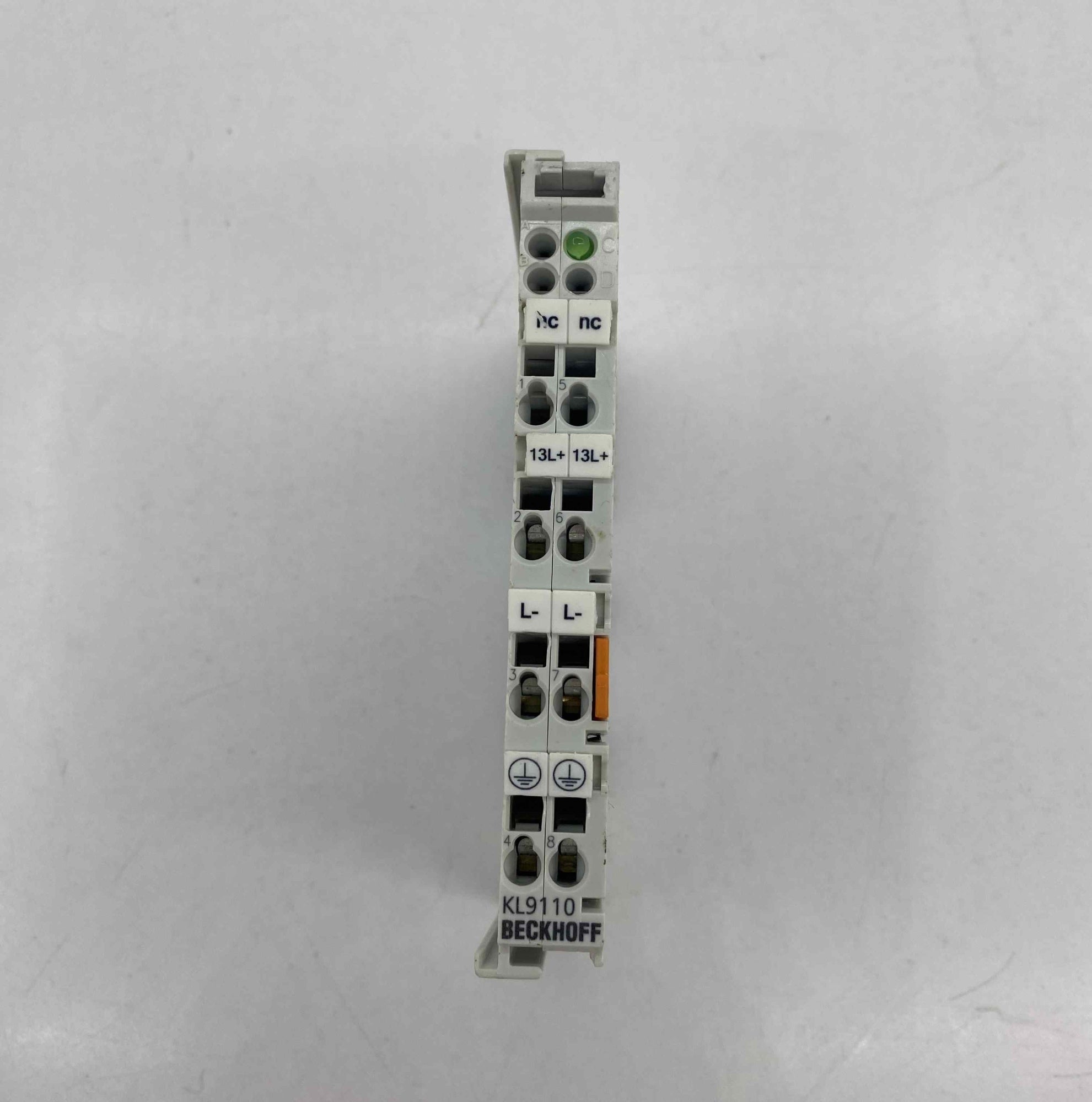

BECKHOFF KL9110 POWER SUPPLY TERMINAL
KL9110 | Potential supply terminal, 24 V DC, with diagnostics
BECKHOFF KL9110. Potential Distribution Terminal. Potential distribution terminal. Used to renew or continue the power supply line. The KL9110 is a power distribution terminal for Bus Terminal systems. Beckhoff KL9110 – Power Distribution Terminal KL9110 | Beckhoff Power Distribution Terminal Power distribution terminal. BECKHOFF KL9110 POWER SUPPLY TERMINAL, Beckhoff kl9110 Power Supply Terminal, 24VDC power supply terminal
|
Technical data |
KL9110 |
|---|---|
|
Current load |
≤ 10 A |
|
Integrated fine-wire fuse |
– |
|
Power LED |
green |
|
Defect LED |
– |
|
Diagnostics |
yes |
|
Current consumption K-bus |
typ. 10 mA |
|
Nominal voltage |
24 V DC |
|
Electrical isolation |
yes |
|
Reported to K-bus |
yes |
|
Shield connection |
– |
|
Renewed infeed |
yes |
|
Connection facility to additional power contact |
1 |
|
K-bus, looped through |
yes |
|
Bit width in the process image |
1 |
|
Electrical connection to DIN rail |
– |
|
Housing width |
12 mm |
|
Weight |
approx. 50 g |
|
Side by side mounting on Bus Terminals with power contact |
yes |
|
Side by side mounting on Bus Terminals without power contact |
yes |
|
Operating temperature |
-25…+60°C |
|
Storage temperature |
-40…+85°C |
|
Plug-in wiring level |
for all KSxxxx Bus Terminals |
|
Approvals/markings |
CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
|
Ex marking |
ATEX: |
