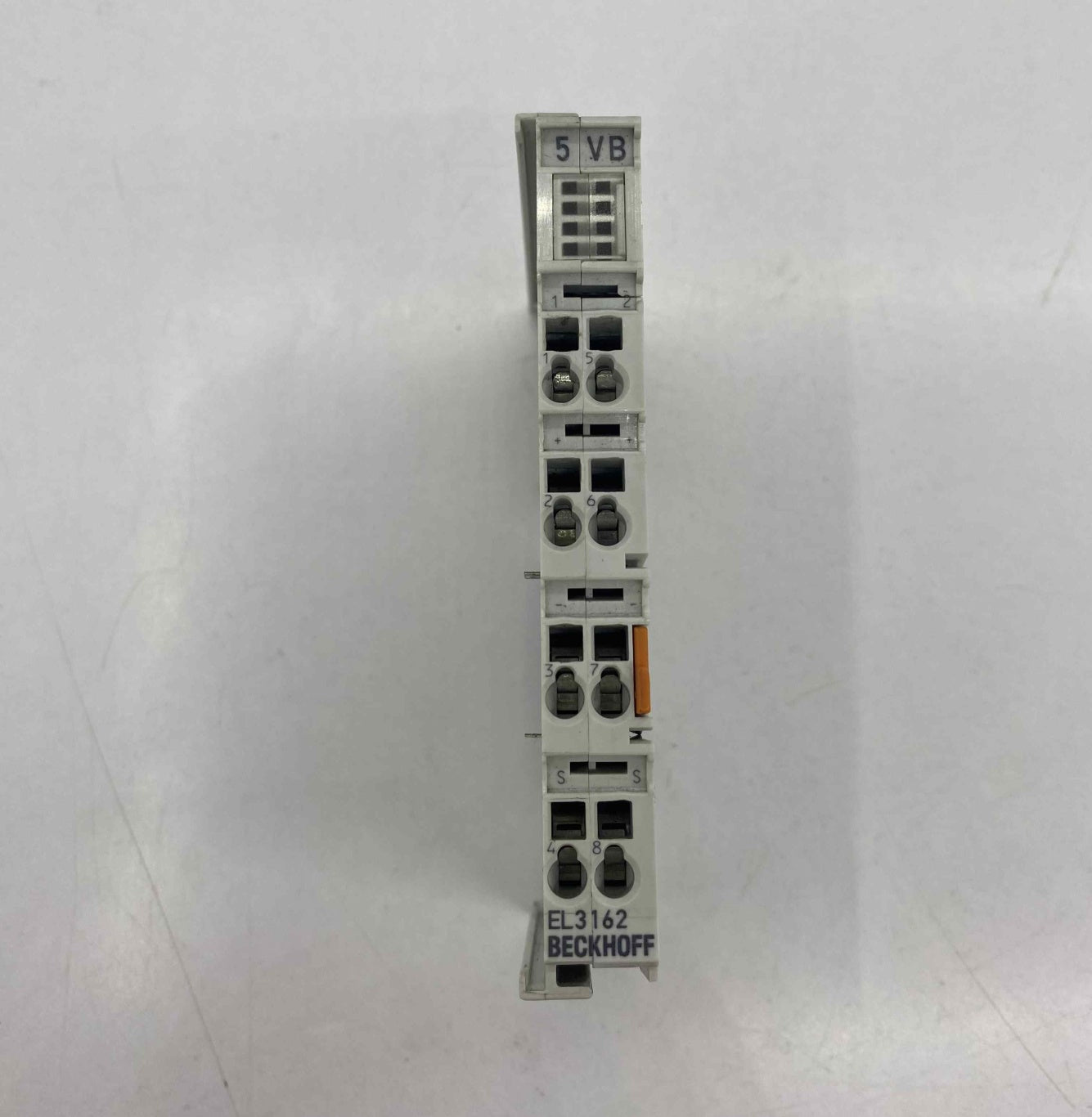

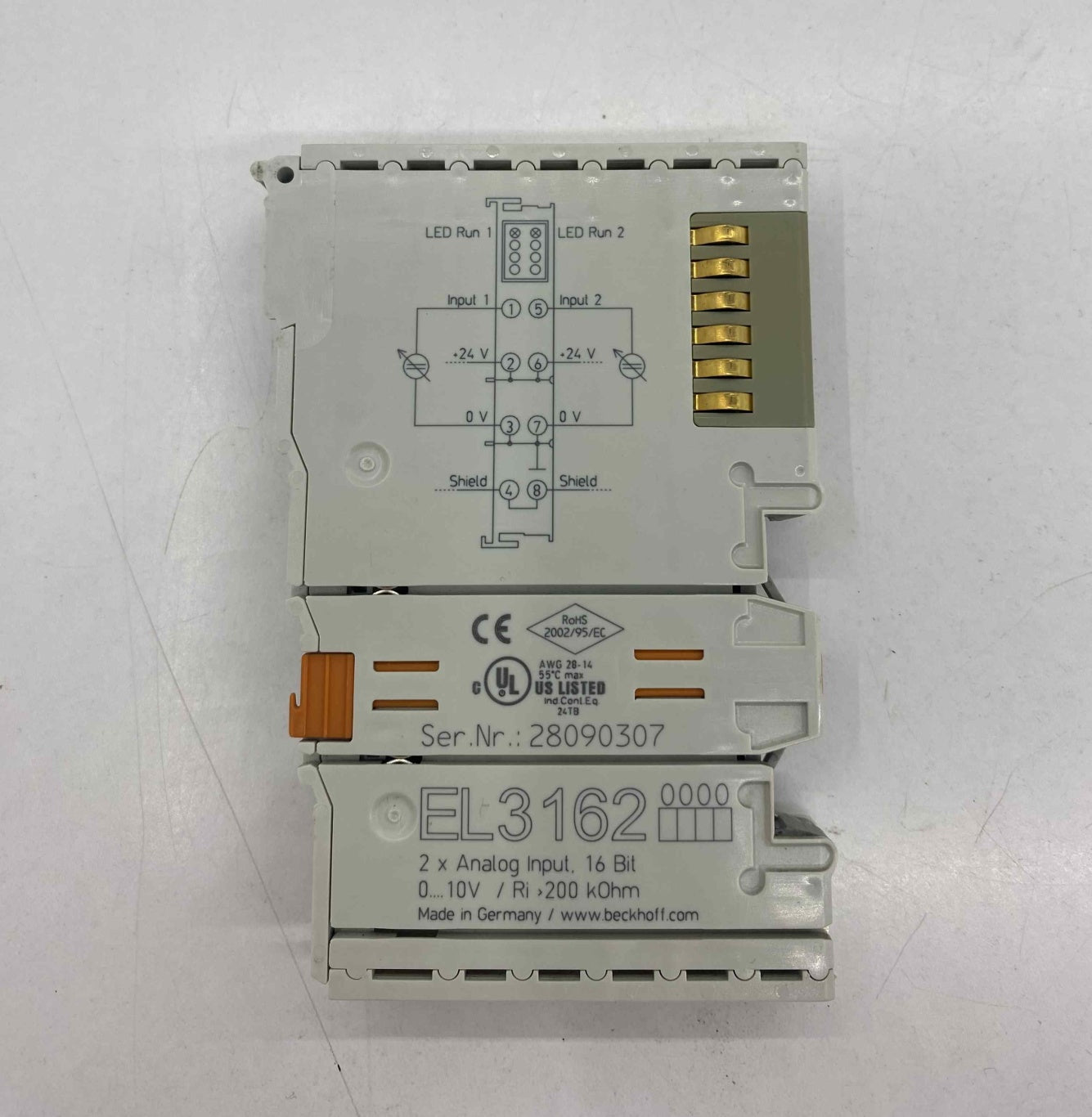

BECKHOFF EL3162 2-CHANNEL ANALOG INPUT
EL3162 | EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, single-ended
BECKHOFF EL3162. 2-channel Current/Voltage Analog Input. 2-channel Analog Input Terminal. Provides flexible sensor connectivity by supporting both current and voltage signals. The EL3162 is a 2CH input terminal designed for reading temperature data from thermocouple sensors. Beckhoff EL3162 – Thermocouple Input Terminal EL3162 | Beckhoff Thermocouple Input Thermocouple input terminal. BECKHOFF EL3162 ANALOG INPUT, Beckhoff EL3162 Analog Input, 2 channel 0–10V analog input
|
Technical data |
EL3162 |
|---|---|
|
Number of inputs |
2 (single-ended) |
|
Power supply |
via the E-bus |
|
Signal voltage |
0…10 V |
|
Distributed clocks |
yes |
|
Internal resistance |
> 200 kΩ |
|
Input filter limit frequency |
5 kHz |
|
Dielectric strength |
max. 30 V |
|
Conversion time |
~ 50 µs |
|
Resolution |
16 bit (incl. sign) |
|
Measurement error/uncertainty |
< ±0.3% (relative to full scale value) |
|
Electrical isolation |
500 V (E-bus/signal voltage) |
|
Current consumption E-bus |
typ. 170 mA |
|
Current consumption power contacts |
– |
|
Bit width in the process image |
2 x 16 bit input, 2 x 8 bit status |
|
Special features |
standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
|
Weight |
approx. 60 g |
|
Operating temperature |
-25…+60°C |
|
Storage temperature |
-40…+85°C |
|
Relative humidity |
95%, no condensation |
|
Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
|
EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
|
Plug-in wiring level |
for all ESxxxx terminals |
|
Protect. rating/installation pos. |
IP20/variable |
|
Approvals/markings |
CE, CCC, UL, ATEX, IECEx |
|
Ex marking |
ATEX: |
