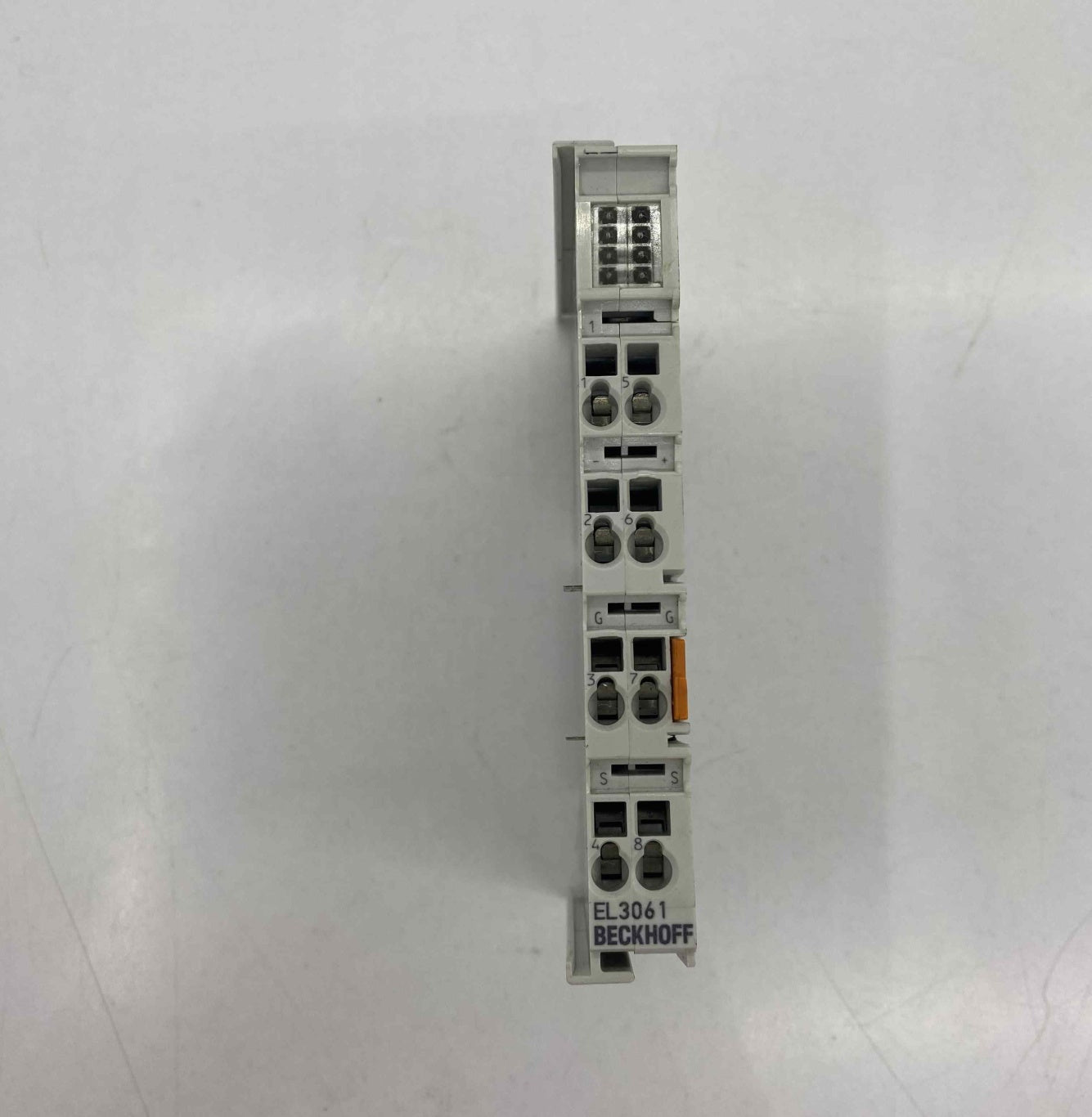

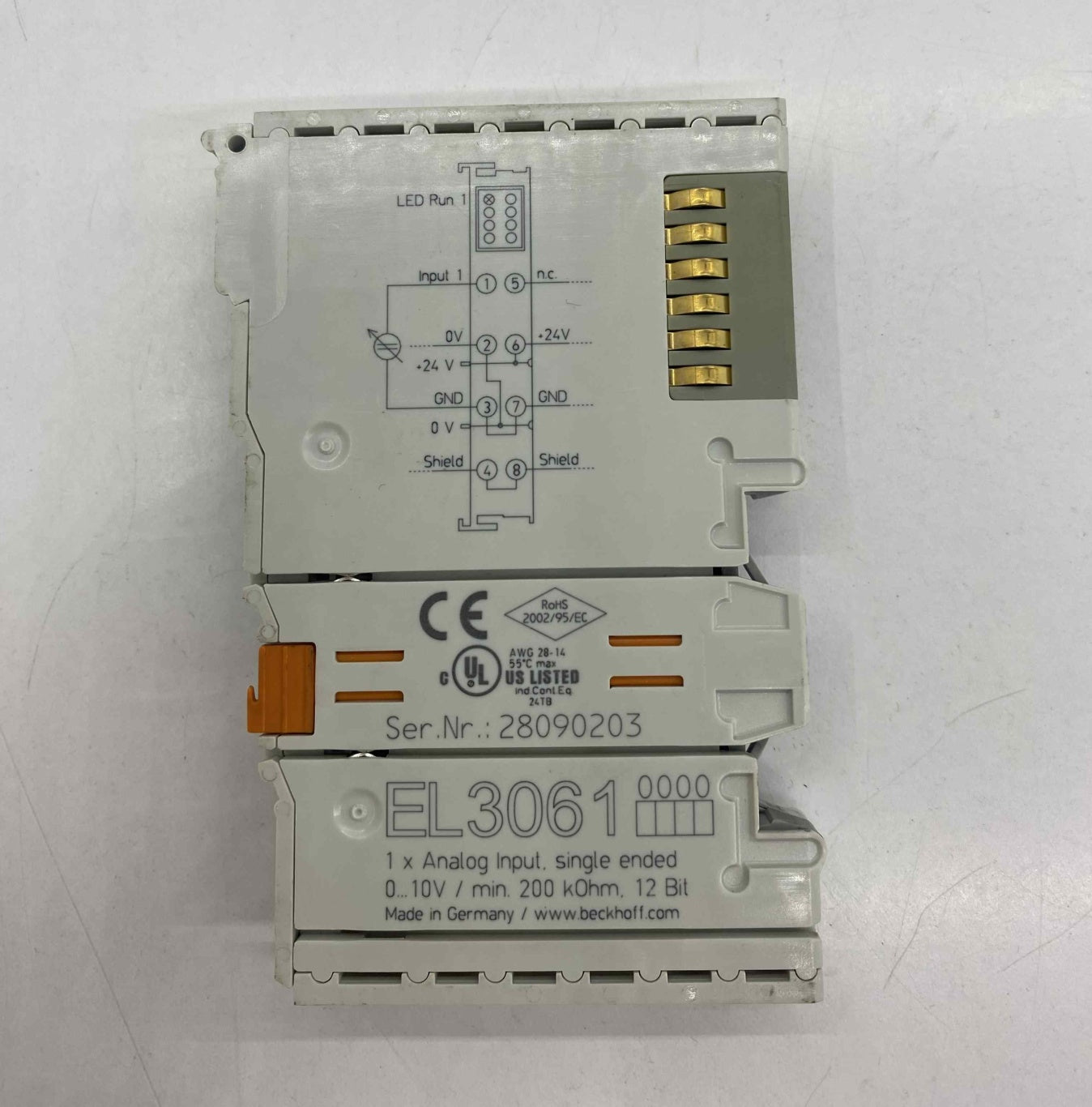

BECKHOFF EL3061 ANALOG INPUT MODULE
EL3061 | EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended
BECKHOFF EL3061. 1-channel High Resolution Analog Input. 1-channel, high resolution and high precision Analog Input Terminal. Designed for critical measurements and laboratory-type applications. The EL3061 is a 1-channel analog input terminal used to measure 0–10V signals. Beckhoff EL3061 – Analog Input (0–10V) EL3061 | Beckhoff Voltage Input 0–10V analog input terminal. BECKHOFF EL3061 ANALOG INPUT, Beckhoff el3061 Analog Input, 1 channel ±10V analog input
|
Technical data |
EL3061 |
|---|---|
|
Number of inputs |
1 (single-ended) |
|
Power supply |
via the E-bus |
|
Signal voltage |
0…10 V |
|
Distributed clocks |
– |
|
Internal resistance |
> 130 kΩ |
|
Input filter limit frequency |
1 kHz |
|
Dielectric strength |
max. 30 V |
|
Conversion time |
0.625 ms default setting, configurable, multiplex |
|
Resolution |
12 bit (16 bit presentation incl. sign) |
|
Measurement error/uncertainty |
< ±0.3% (relative to full scale value) |
|
Electrical isolation |
500 V (E-bus/signal voltage) |
|
Current consumption E-bus |
typ. 130 mA |
|
Current consumption power contacts |
– |
|
Bit width in the process image |
inputs: 4 byte |
|
Special features |
activatable FIR/IIR filters, limit value monitoring |
|
Weight |
approx. 60 g |
|
Operating temperature |
-25…+60°C |
|
Storage temperature |
-40…+85°C |
|
Relative humidity |
95%, no condensation |
|
Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
|
EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
|
Plug-in wiring level |
for all ESxxxx terminals |
|
Protect. rating/installation pos. |
IP20/variable |
|
Approvals/markings |
CE, CCC, ATEX, IECEx |
|
Ex marking |
ATEX: |
