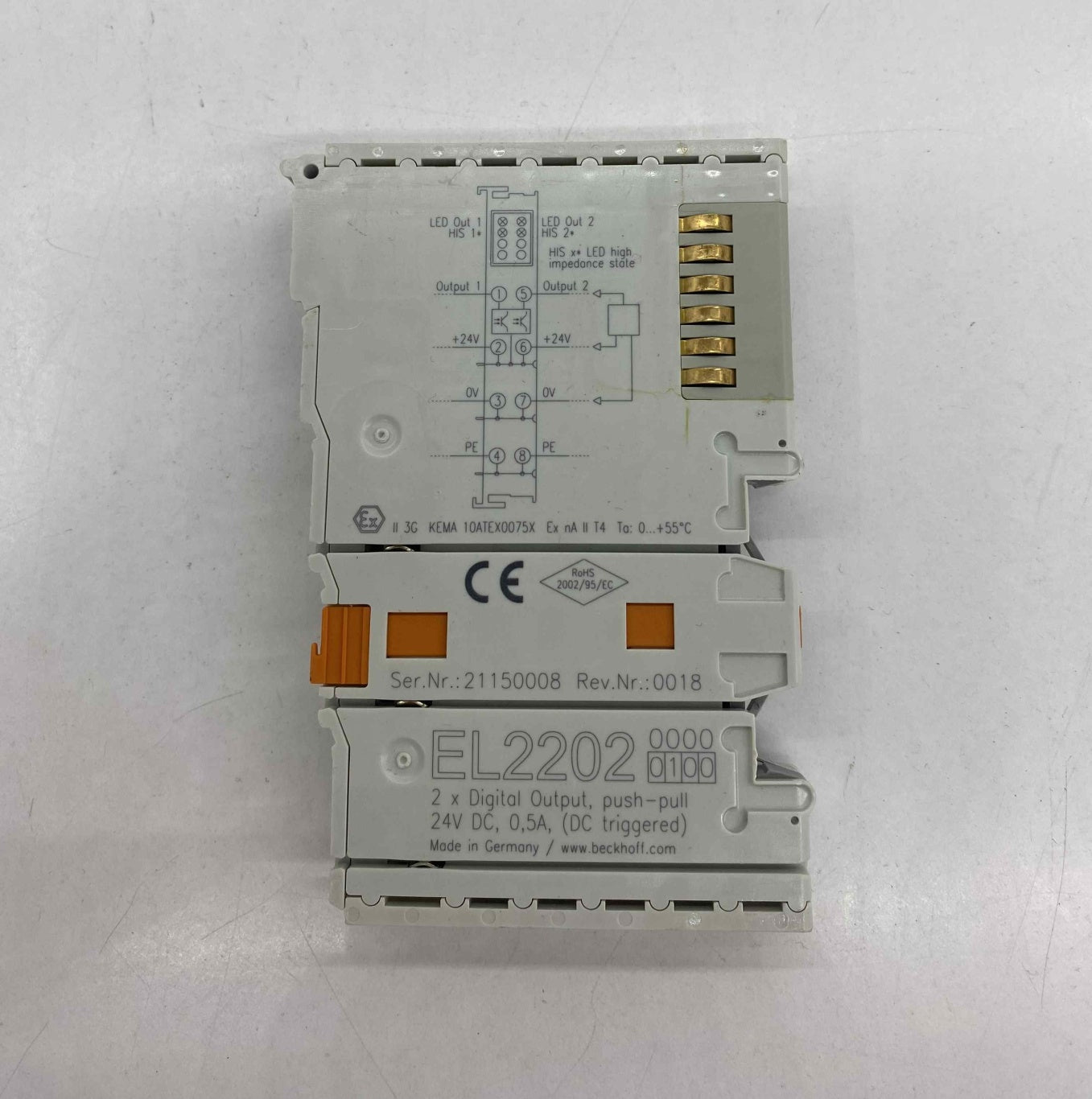

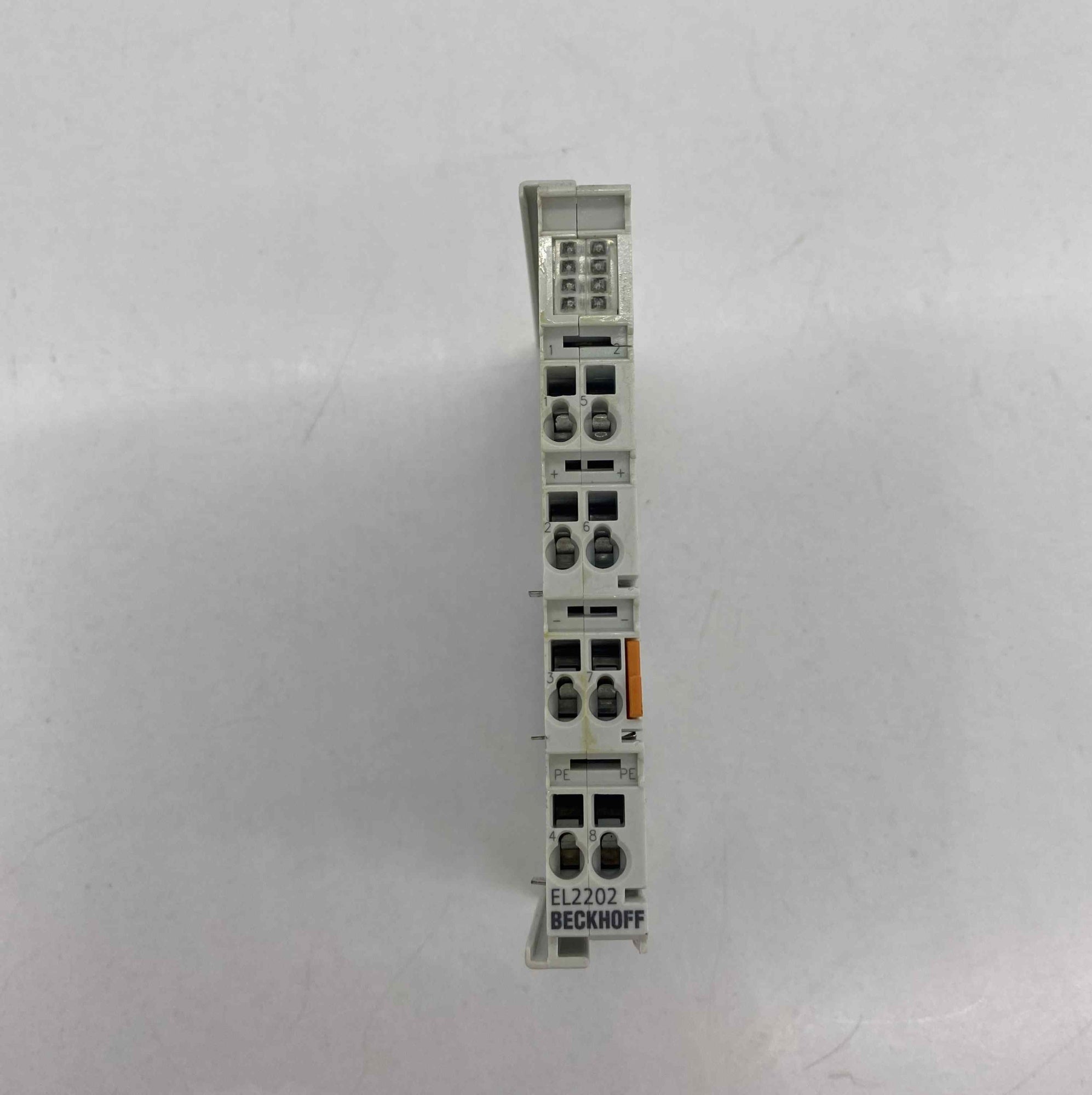

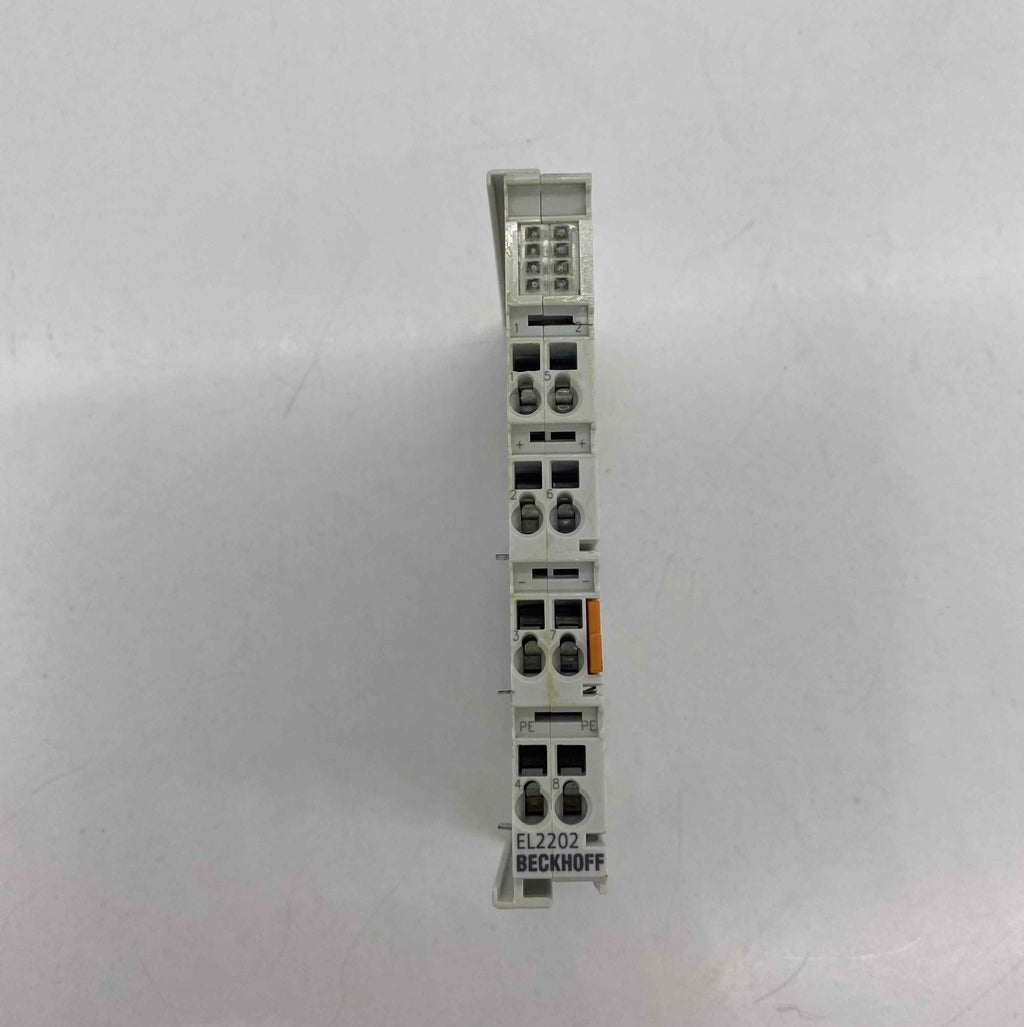

BECKHOFF EL2202 DIGITAL OUTPUT MODULE
EL2202 | EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, push-pull, tristate
BECKHOFF EL2202. 2-Channel High Current Digital Output. 2-channel Digital Output Terminal with higher switching current (High Current). Especially suitable for direct driving of industrial relays and contactors. The EL2202 is a 2-channel digital output terminal with push-pull technology. Beckhoff EL2202 – Push-Pull Output Terminal EL2202 | Beckhoff Push-Pull Output Push-pull output module. BECKHOFF EL2202 FAST DIGITAL OUTPUT, Beckhoff el2202 Fast Digital Output, 2-channel fast output (1µs)
|
Technical data |
EL2202 |
|---|---|
|
Connection technology |
4-wire |
|
Number of outputs |
2 |
|
Nominal voltage |
24 V DC (-15%/+20%) |
|
Load type |
ohmic, inductive, lamp load |
|
Distributed clocks |
– |
|
Max. output current |
0.5 A (short-circuit proof in push operation) per channel |
|
Output stage |
push-pull, high-ohmic |
|
Short-circuit current |
typ. 4 A/150 µs |
|
Reverse voltage protection |
yes |
|
Breaking energy |
< 150 mJ/channel |
|
Switching times |
typ. TON: < 1 µs, typ. TOFF: < 1 µs |
|
Current consumption E-bus |
typ. 130 mA |
|
Current consumption power contacts |
typ. 30 mA + load |
|
Bit width in the process image |
2 x 2 bit output |
|
Configuration |
no address or configuration setting |
|
Electrical isolation |
500 V (E-bus/field potential) |
|
Special features |
can be converted to DC version EL2202-0100, outputs connectable in high-resistance mode |
|
Weight |
approx. 60 g |
|
Operating temperature |
-25…+55°C |
|
Storage temperature |
-40…+85°C |
|
Relative humidity |
95%, no condensation |
|
Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
|
EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
|
Protect. rating/installation pos. |
IP20/variable |
|
Plug-in wiring level |
for all ESxxxx terminals |
|
Approvals/markings |
CE, CCC, UL, ATEX, IECEx |
|
Ex marking |
ATEX: |
